SVS PC12-NSD 12" 800W Ported Cylinder Subwoofer

12" Ported Cylinder 800W DSP Controlled Home Theatre Subwoofer Sub SVS PC12-NSD

Our Most Affordable Powered Cylinder
The original SVS subwoofer was a cylinder design, and this unique and elegant form factor has since become an iconic symbol of SVS performance heritage. The PC12-NSD is our most affordable powered cylinder, but after experiencing its performance, no one would dare call it 'entry level'. Every component reflects SVS performance pedigree, and the PC12-NSD obliterates over-priced and under-performing brick & mortar subwoofers, even at twice the price. Prepare to be pleasantly shocked at what the PC12-NSD will bring to your music and home theater system – bass so accurate, detailed, dynamic, and deep that after one listen your old 'subwoofer' will be kicked to the curb.


NSD-12 Driver – Best In Class Performance
SVS never stops improving the breed, and our newest NSD-12 has even better all-round performance than its predecessor. A more linear force/displacement profile, improved transient response with less 'overhang', and even wider bandwidth elevate the NSD-12 transducer to best-in-class performance. What does all this mean to the enthusiast? Tight, clean and accurate bass with lots of slam and impact – you'll be the envy of all your friends on movie night!

• Finite Element Analysis (FEA)-optimized motor with dual shorting rings and pole extenders to reduce gap induction and distortion.
• 2" diameter, high-power voice coil with high-temp former.
• Nomex linear-roll super long-throw spider.
• Exclusive SVS aluminum cone and composite dust cap for excellent transient response and resonance control.
• Vented pole-piece for greater cooling, low noise, and reduced compression artifacts.

Sledge Amplification – Intelligent and Sophisticated Power
Our Sledge STA-400D amplifier sports technology and features simply not found anywhere else at this price point. Starting with a conservatively rated 400 watts of DSP-controlled power – a perfect match for the rugged NSD-12 driver. You won't find old-fashioned analog pots on this amp – every control knob is actually a digital actuator for precise and noise-free adjustment. And comprehensive and flexible connectivity options allow for easy set-up and integration into any home theater or stereo system.

• 400 watts RMS continuous power (800 watts peak dynamic power).
• Efficient, cool-running Class D power with 'green' standby mode.
• Stereo line-level RCA input/output connections.
• Separate high-passed and unfiltered line level outputs.
• Continuously variable low pass filter.
• DSP control for refined behavior under all operating conditions.

Compact Footprint, Efficient Performance
With only a 16.5" diameter footprint, the PC12-NSD will fit into almost any location, and no other subwoofer design offers more bass performance per square inch of floor space. Using vertical height to achieve a generous enclosure volume and a deep-tuned port, the result is excellent deep bass performance and outstanding mid-bass slam – all in a very manageable size. Finished in high-grade black velour fabric, this unique and elegant subwoofer will complement the most upscale décors and high-end theaters.

• Small footprint fits into tight locations and is perfect for the enthusiast with limited floor space.
• Slender vertical form factor results in generous enclosure volume for efficient reproduction of the deepest bass notes.
• Down-firing driver provides a low center-of-gravity and excellent stability.
• Wide-flared 4" port for maximum air-flow with no artifacts.
• 20 Hz tuning for optimal extension and output on all source material.

The NSD Experience – Discover Truly Affordable High Performance
The PC-12 NSD offers famous SVS pedigree and performance at a shockingly low price. Upgrade to the PC12-NSD and leave your old retail sub in the dust. Revel in bass so superbly rendered, music and movies will never be the same – you'll be rushing to listen to your entire collection again for the 'first time'. Truly - affordable world-class bass in a unique and slender form factor – only from SVS.

Please note: Free shipping for this item is only offered to buyers from VIC/ACT/NSW/SA/TAS/QLD. For WA/NT, please contact us for a shipping quote.

Enclosure Specs:

• Dimensions: 35-3/4" (H), 16-5/8" (OD)
• Weight: 59 pounds
• Extremely rigid and strong cylinder enclosure
• High-grade black fabric exterior cover
• Down-firing driver with integral base plate
• Top-firing 4" high-flow flared port

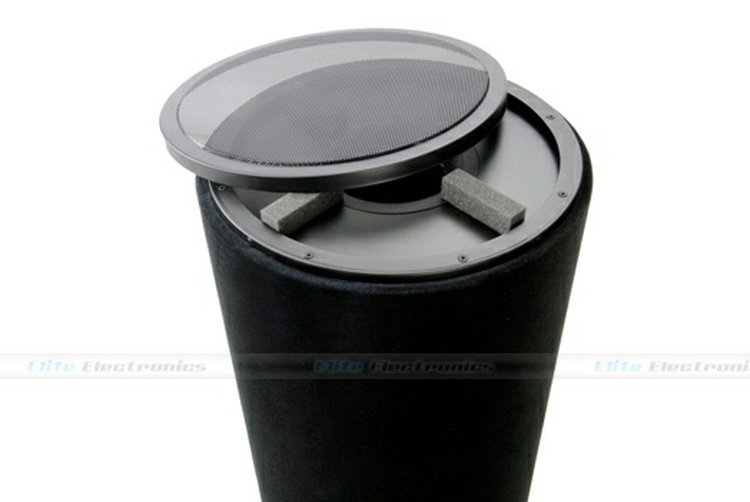

• Protective non-resonant steel mesh grille

Driver Specs:

• SVS 12” NSD driver
• 2” diameter, high-power voice coil with high-temp former
• Nomex linear roll long-throw spider
• Low-creep rubber long-throw surround
• Spider-integrated tinsel leads
• Aluminum cone and composite dust cap with SVS logo
• Powder-coated cast aluminum basket
• Finite Element Analysis (FEA)-optimized motor structure
• Dual shorting rings and pole extenders to reduce gap induction and distortion
• Dual high-grade ferrite magnets
• Pole piece vent for greater cooling, low noise, and reduced air compression

Amp Specs:

• STA-400D Sledge with 400 watts RMS continuous power (800 watts peak dynamic power)
• High efficiency cool-running Class D switching topology
• Detachable power cord with main power switch and fuse
• RoHS compliant, lead-free construction and world-wide safety certifications
• Auto-On / On switch with "green" standby mode
• Stereo line-level RCA input/output connections
• Fully adjustable low pass filter with Disable setting
• Unfiltered (for daisy-chain) and 80 Hz HPF line level RCA outputs
• Customized EQ and DSP limiter settings specifically for the PC12-NSD
