SVS SoundPath 15m Audio Interconnect Cable

SVS SoundPath Audio Interconnect Cable. High performance, precision analog audio cables with hallmark SVS value

SVS SoundPath Audio Interconnect Cable: High performance, precision analog audio cables with hallmark SVS value. Available in 15 meter lengths.

SVS SoundPath analog audio cables are the perfect choice for all low-frequency and full-range interconnect applications. Available in a variety of lengths and constructed with the highest quality materials, SoundPath audio cables deliver state-of-the-art performance and priced affordably - delivering trademark SVS value.

With cold-fused gold plating on the center pin and the outer contact ring, and multi-strand high-purity copper center and outer conductors, SoundPath audio cables have an ultra-wide bandwidth and exceptionally low capacitance - delivering superior electrical performance.


Amazingly faithful to the input signal, SoundPath audio cables deliver a spacious soundstage, solid three-dimensional imaging, sparkling and airy highs, an uncolored and neutral midrange and tight articulate bass.

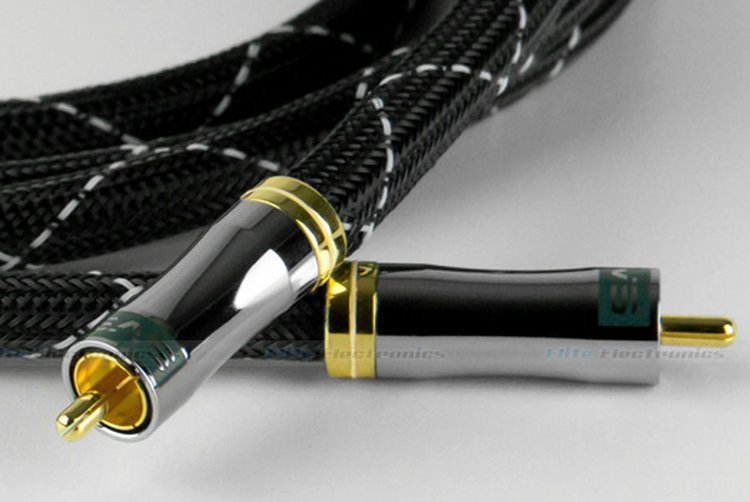

Featuring a highly polished chrome-plated outer connector shell with SVS logo and color-coded polarity markings, and a handsome black Nylon protective covering, SoundPath premium audio cables exude quality and craftsmanship and are the perfect complement to any high-end system!

Order a single SVS SoundPath audio interconnect cable for single channel (and single subwoofer) connections. For stereo applications, pairs of interconnects can be ordered, and will be shipped with color-coded polarity markings (red and white) to help identify the different channels.

CABLE - Materials Of Construction:

• Center Conductor 2.1 mm 13-strand high-purity copper.
• Dielectric: White gas-injected foam polyethyene (FPE).
• Dielectric Cover: Bonded aluminum/ployester foil tape.
• Outer Conductor: 56-strand high-purity copper.
• Outer Jacket: 8 mm black polyvinyl chloride (PVC).
• Protective Outer Jacket Cover: Black Nylon weave with attractive white cross hatch pattern.

RCA CONNECTOR - Materials Of Construction:

• Center Pin and Outer Ring: Cold-fused 50 micron gold-plated brass for optimum signal quality and integrity.
• Outer Shell: Highly polished chrome-plated brass with SVS logo and color-coded polarity band. The outer contact ring is specially designed to maintain a secure grip on the RCA jack.

Termination Specifics:
The center conductor and shield are both hand-soldered to the RCA connector. The outer PVC jacket is secured to the RCA connector with a large diameter set screw which firmly holds the jacket against the RCA body. This high-quality termination enhances durability and longevity.


Electrical Properties:

• Conductor DCR:139 mΩ/meter
• Shield DCR: 35 mΩ/meter
• Nominal Impedance: 50Ω. Cable and RCA connectors are impedance-matched to minimize Voltage Standing Wave Ratio (VSWR) and Return Loss.
• Nominal Capacitance: 100 pF/meter @ 1kHz
• Rated Bandwidth: DC-2.0 GHz with ≤1.1 VSWR and ≥26dB Return Loss.
• Protective Outer Jacket Cover: Black Nylon weave with attractive white cross hatch pattern.
