Yamaha 10" 2-Way Passive PA Loudspeaker (Single)

Yamaha CHR10 10-Inch 2-Way Passive Loudspeaker

The Yamaha CHR10 is a high-performance 2-way passive loudspeaker engineered for professional live sound reinforcement, fixed installations, and utility monitor applications. Featuring a custom-designed 10-inch woofer and a 1.4-inch high-frequency compression driver housed in a durable plywood cabinet, the CHR10 delivers outstanding audio clarity and precision. Equipped with a rotatable dispersion horn and versatile mounting options, this compact speaker is an ideal solution for small-to-medium venues, stage monitoring, and commercial sound setups.

• Premium Plywood Cabinet: Built with a rugged polyurea-coated plywood enclosure that minimizes unwanted cabinet resonance while providing exceptional durability.
• Rotatable Dispersion Horn: Features a 90° x 60° rotatable high-frequency horn allowing flexible horizontal or vertical mounting while maintaining consistent sound coverage.

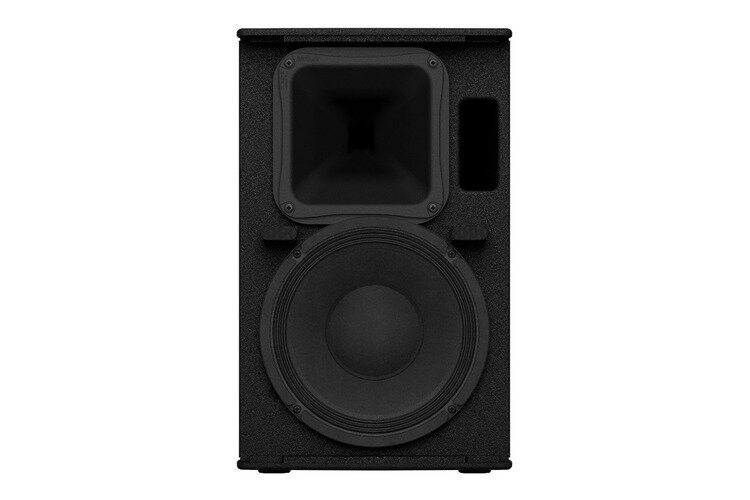

• Custom Transducers: High-power 10-inch low-frequency woofer delivers tight mid-bass, paired with a 1.4-inch precision compression driver for smooth treble output.
• Versatile Mounting Options: Equipped with standard M10 rigging points for suspended installation, a dual-angle pole socket for stand mounting, and a dedicated bracket receiver.
• Dual SpeakON Connectors: Fitted with industry-standard speakON NL4MP connectors for secure, reliable input and loop-through amplifier wiring.

• Speaker Type: 2-Way Passive Loudspeaker
• Low-Frequency Driver: 10-Inch Cone with 2-Inch Voice Coil
• High-Frequency Driver: 1.4-Inch Compression Driver (1-Inch Throat)
• Power Rating (Noise / Program / Peak): 175W / 350W / 700W
• Nominal Impedance: 8 Ohms
• Frequency Range (-10dB): 55Hz – 20kHz
• Coverage Angle (H x V): 90° x 60° (Rotatable)
• Maximum SPL (1m): 122 dB SPL

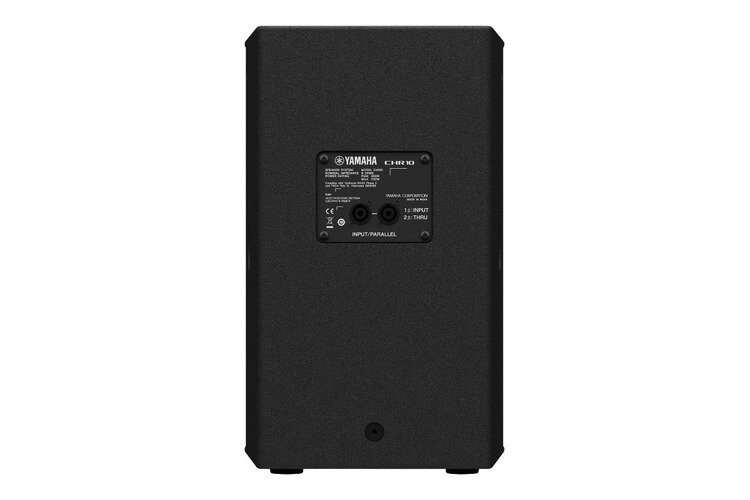

• Input Connectors: 2 x speakON NL4MP (Parallel)
• Enclosure Material: Plywood with Polyurea Coating
• Dimensions (W x H x D): 305 mm x 494 mm x 300 mm (12.0 in x 19.4 in x 11.8 in)
• Weight: 13.7 kg (30.2 lbs)
• Application: Live Sound Reinforcement, Commercial Installation, Utility Stage Monitoring
