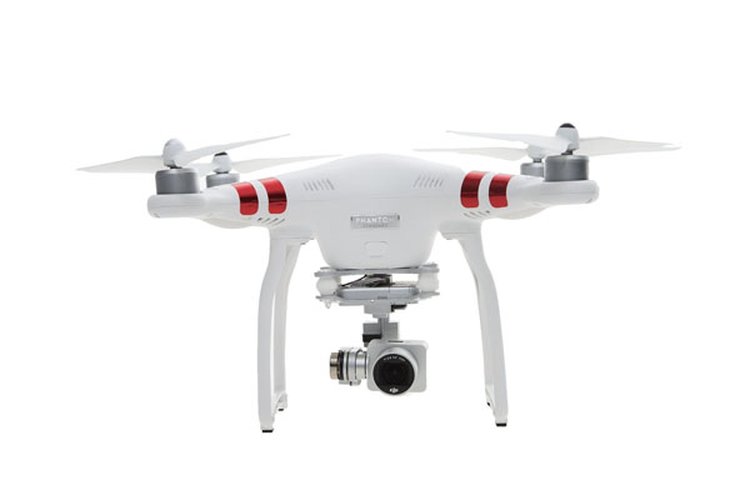

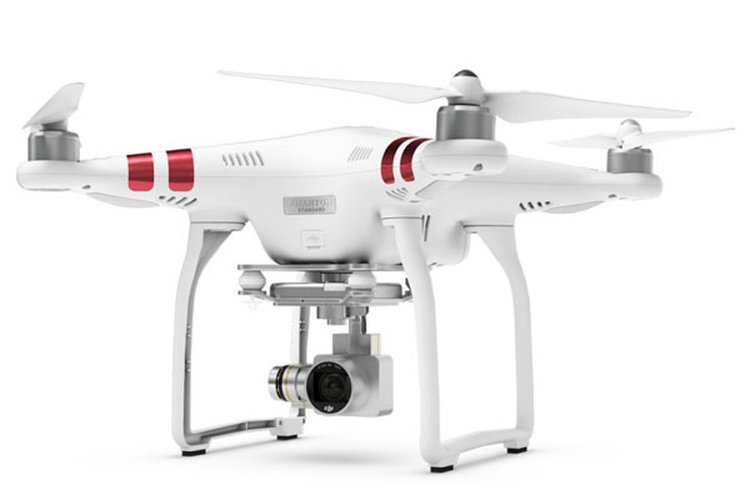

DJI Phantom 3 Standard Drone with Integrated 2.7K-HD Camera

DJI Phantom 3 Standard Drone with Integrated 2.7K-HD Stabilised Camera

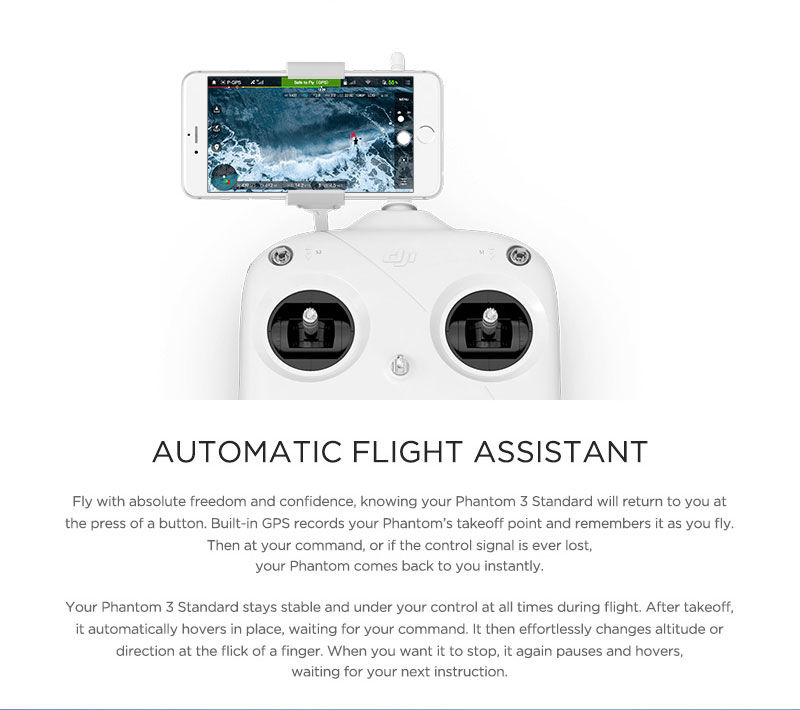

• Easy to Fly: An intelligent flight system automatically keeps your Phantom 3 Standard in the air and under your control.
• Amazing Images: Take stunning 2.7K HD videos and 12 Megapixel photos with the integrated aerial camera.
• Stable Footage: DJI’s advanced gimbal stabilization technology gives you movie-quality results no matter how you fly.

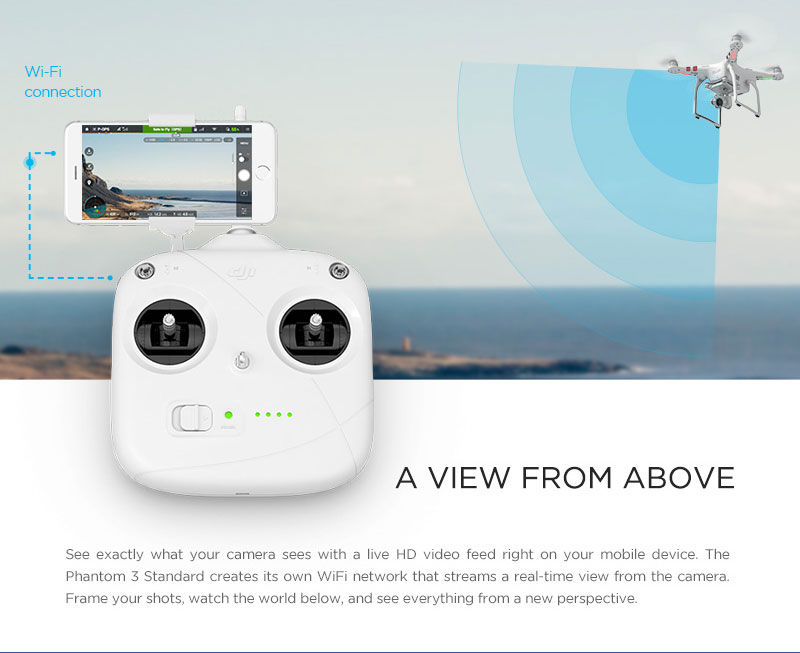

• Enjoy the View: A live video feed gives you a 720p HD real-time view of what your camera sees right on your mobile device.

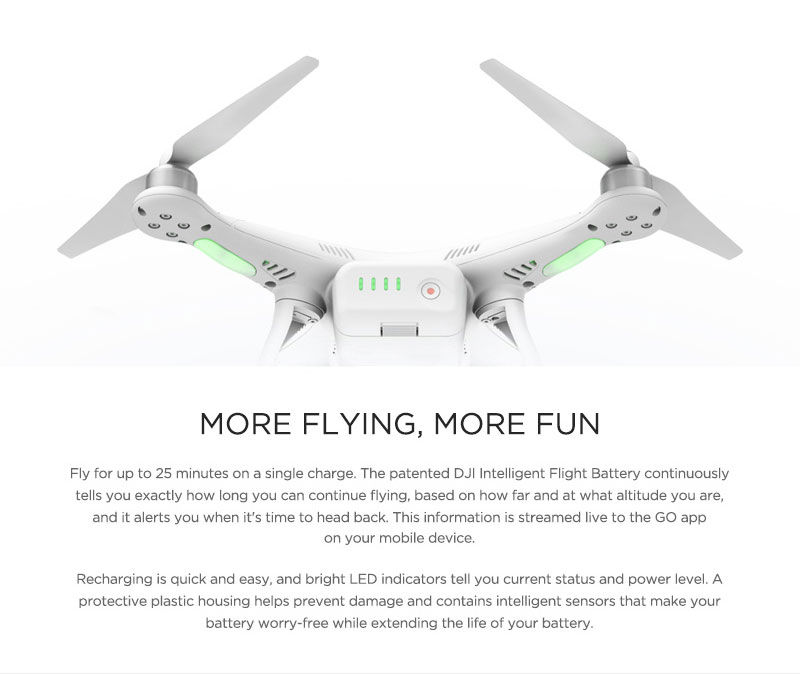

• Peace of Mind: Fly up to 25 minutes on a single charge, and the Intelligent Flight Battery will automatically remind you when power is running low.

Aircraft

Weight (Including Battery)
1216 g

Max Ascent Speed
5 m/s

Max Descent Speed
3 m/s

Max Speed
16 m/s (ATTI mode, no wind)

Max Service Ceiling Above Sea Level
6000 m (Software altitude limit: 120 m above takeoff point)

Max Flight Time
Approximately 25 minutes

Operating Temperature
0°C to 40°C

Navigation System
Built-in GPS

Gimbal

Controllable Range
Pitch -90° to +30°

Angular Vibration Range
±0.02°

Camera

Sensor
1/2.3” Effective pixels:12 M

Lens
FOV (Field Of View) 94° 20 mm (35 mm format equivalent) f/2.8

ISO Range
100-3200 (video) 100-1600 (photo)

Electronic Shutter Speed
8s -1/8000s

Image Max Size
4000 x 3000

Still Photography Modes

• Single Shot
• Burst Shooting: 3/5/7 frames
• Auto Exposure Bracketing (AEB): 3/5
• Bracketed Frames at 0.7EV Bias
• Time-lapse

Video Recording Modes

• 2.7K: 2704 x1520p 24/25/30 (29.97)
• FHD: 1920x1080p 24/25/30
• HD: 1280x720p 24/25/30/48/50/60

Max.Video Bitrate
40 Mbps

Supported File Formats

• Micro SD Card: FAT32/exFAT
• Photo: JPEG, DNG
• Video: MP4, MOV (MPEG-4 AVC)

Supported SD Card Types
Micro SD Card 8 GB included

Operating Temperature
0°C to 40°C

Wi-Fi Video Link

Operating Frequency
2.400 GHz – 2.483 GHz

Max Transmission Distance
FCC: 1000 m; CE: 500 m (outdoors and unobstructed, aircraft's altitude at 400 feet (120 m))

Transmitter Power (EIRP)
FCC: 27 dBm; CE: 20 dBm

Power Spectral Density
5.69mW/MHz

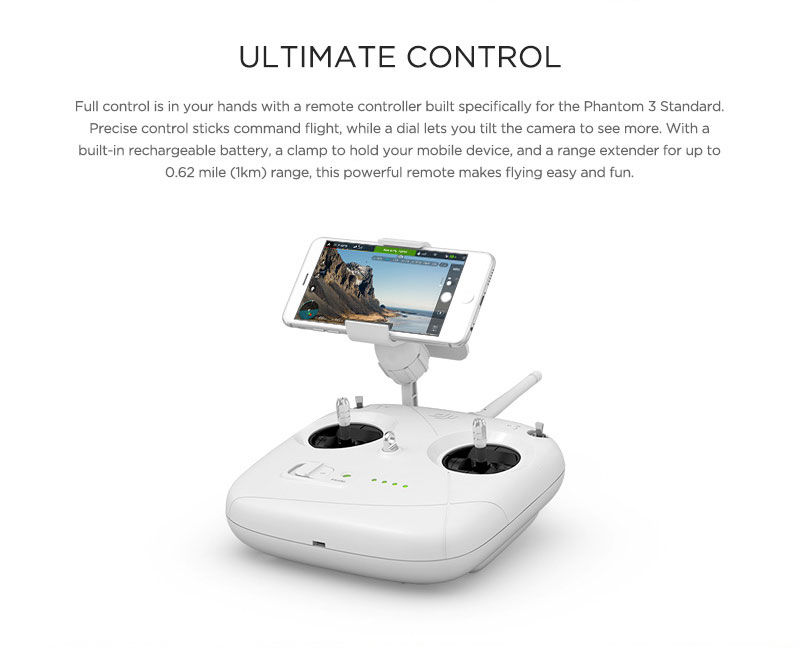

Remote Controller

Operating Frequency
5.725 GHz – 5.825 GHz, 922.7 MHz – 927.7 MHz (Japan)

Max Transmission Distance
FCC: 1000 m; CE: 500 m (outdoors and unobstructed, aircraft's altitude at 400 feet (120 m))

Operating Temperature
0°C to 40°C

Battery
2600 mAh LiPo 18650

Transmitter Power (EIRP)
-FCC: 19 dBm
-CE: 14 dBm

Working Voltage
600 mA @ 3.7V

Charging Port
Micro USB

Charger

Voltage
17.4 V

Rated Power
57 W

Intelligent Flight Battery ( PH3-4480 mAh-15.2 V )

Capacity
4480 mAh

Voltage
15.2 V

Battery Type
LiPo 4S

Energy
68 Wh

Net Weight
365 g

Max Flight Time
Approximately 25 minutes

Operating Temperature
-10°C to 40°C

Max Charging Power
100 W

App / Live View

Mobile App
DJI GO

EIRP
100mW

Live View Working Frequency
2.4GHz ISM

Live View Quality
720P @ 30fps (depending on conditions and mobile device)

Latency
Low Latency Video (depending on conditions and mobile device)

Required Operating Systems
-iOS 8.0 or later
-Android 4.1.2 or later

Recommended Devices

• iOS: iPhone 5s, iPhone 6, iPhone 6 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, and iPad mini 3 Wi-Fi + Cellular. This app is optimized for iPhone 5s, iPhone 6, and iPhone 6 Plus
• Android: Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 9, Google Nexus 7 II, Ascend Mate7, Nubia Z7 mini, SONY Z3 EXPERIA, MI 3, MI PAD、Smartisan T1
