Steelmate TP-90 Motorcycle Wireless DIY TPMS

The Steelmate TP-90 DIY motorcycle tyre pressure monitoring system (TPMS) can be easily installed within half an hour

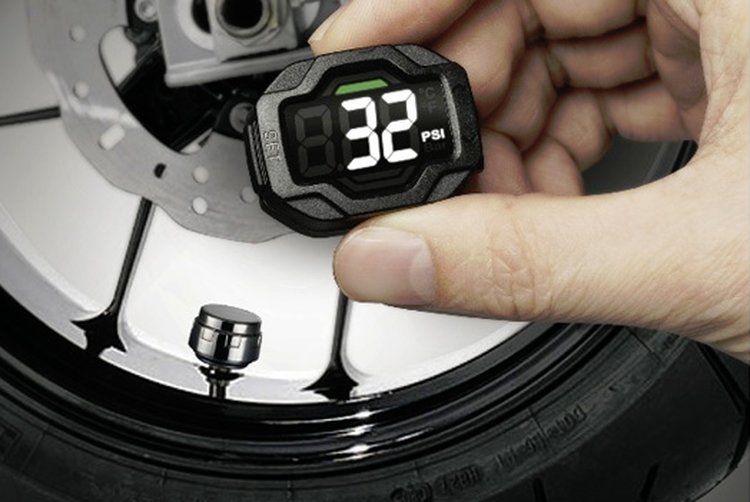

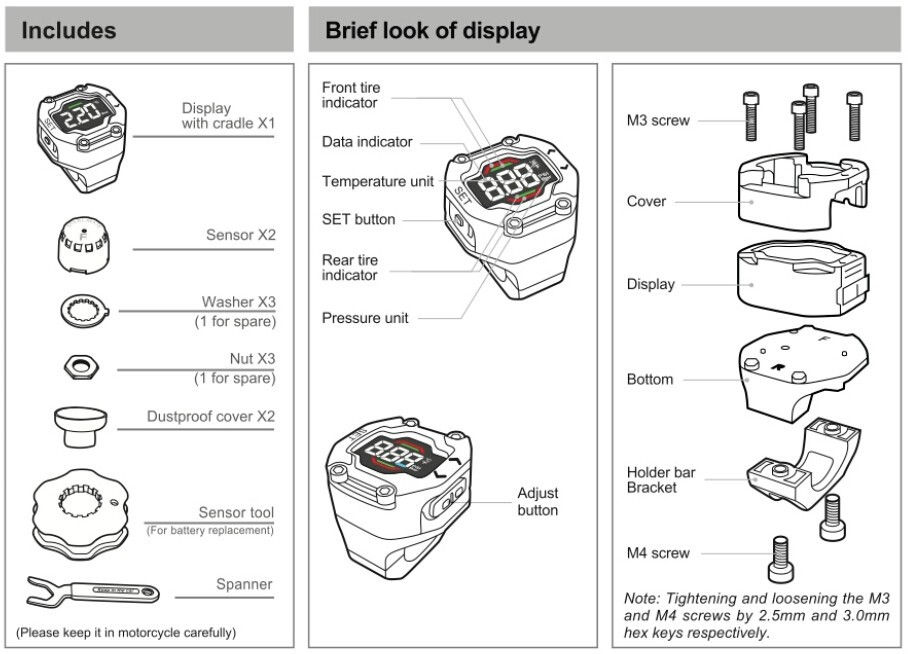

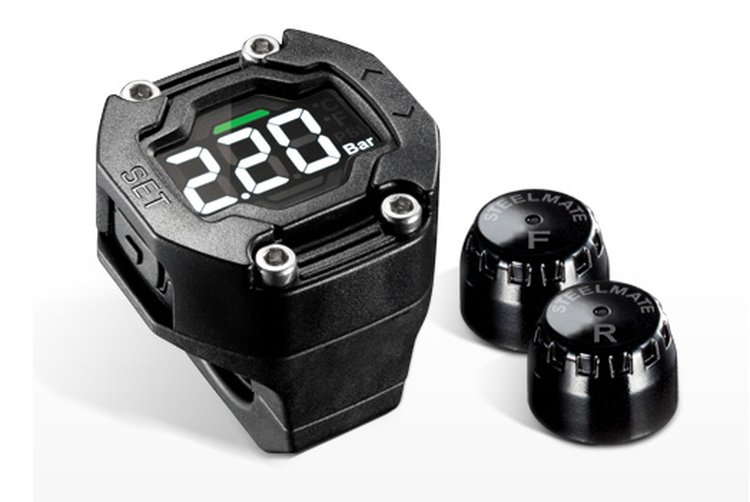

The system comes with 2 screw on sensors and a visual display that shows in real time the current tyre pressures of both tyres in PSI/Bar format in a front and back scrolling motion. The visual display provides audible and visual warnings when a tyre pressure drops below or raises above the recommended level. Both sensors come pre-paired to the correct wheel position and are labelled for easy installation, simply screw the sensors onto the motorcycle valve stem then lock in place with the provided locknut and tool.




Features:

• Waterproof and dustproof display

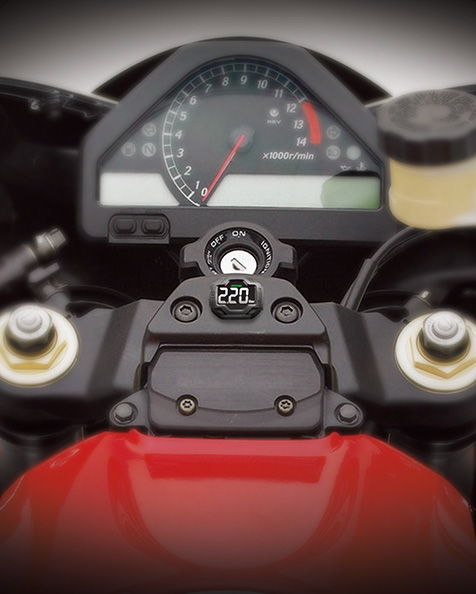

• Stylish display can be securely mounted on handle or firmly stick on dash
• Green light on every 2 seconds to show the real-time tyre pressure of corresponding tyre
• Tyre pressure and temperature threshold adjustable
• Choice of pressure & temperature units (PSI / Bar , ℃ / ℉)
• The display brightness can be reduced 25s after each power-on/ by pressing SET button
• Replaceable sensor battery with CR1632
• No tyre balance needed
• The system will be paired and activated once the motorcycle is over 20km/hr for about 10 minutes



Sensors

• Operating Frequency: 433.92MHz
• Operating Voltage: 1.8~3.3V
• Operating current:≤18mA
• Battery Type: CR1632
• Operating Temperature: -20°C – +60°C
• Pressure Monitoring Range: 0-4.5 Bar / 0-65 Psi

Pressure and Temperature

• Pressure:29~51PSI/2.0 ~ 3.5Bar
• Temperature:+50℃ ~ +80℃/+112℉~+176℉
• Default Value (pre-set in the factory):
• Threshold Pressure:36PSI/2.5Bar
• High pressure value:47PSI/3.3Bar
• Low Pressure value:25PSI/1.7Bar
• High temperature value:+80℃ / +176℉
