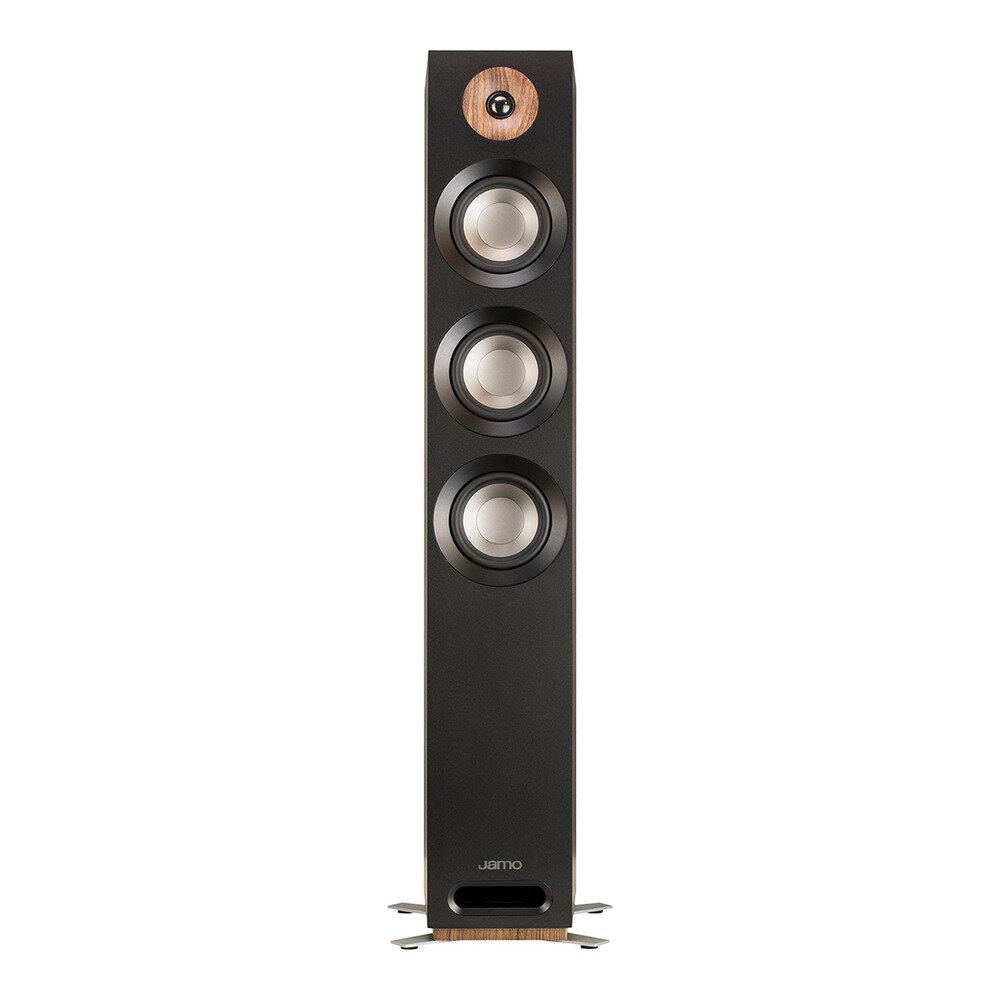

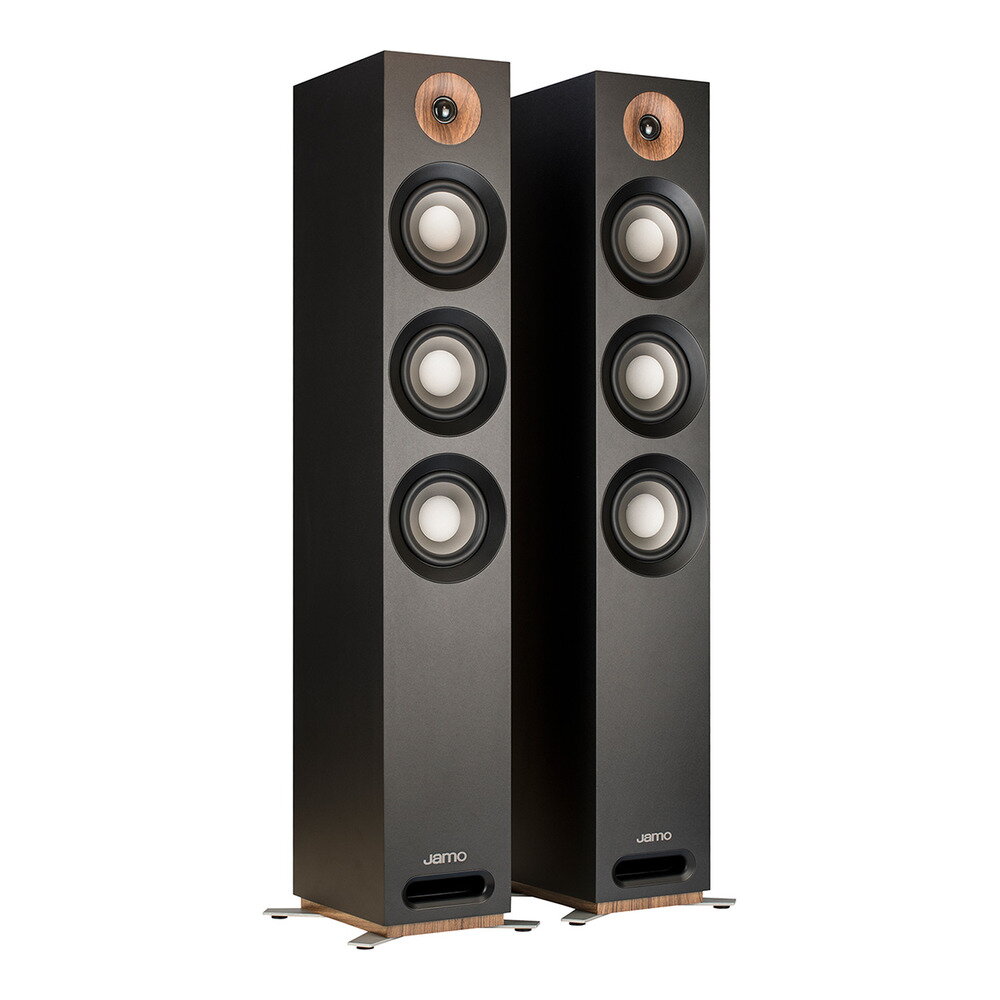

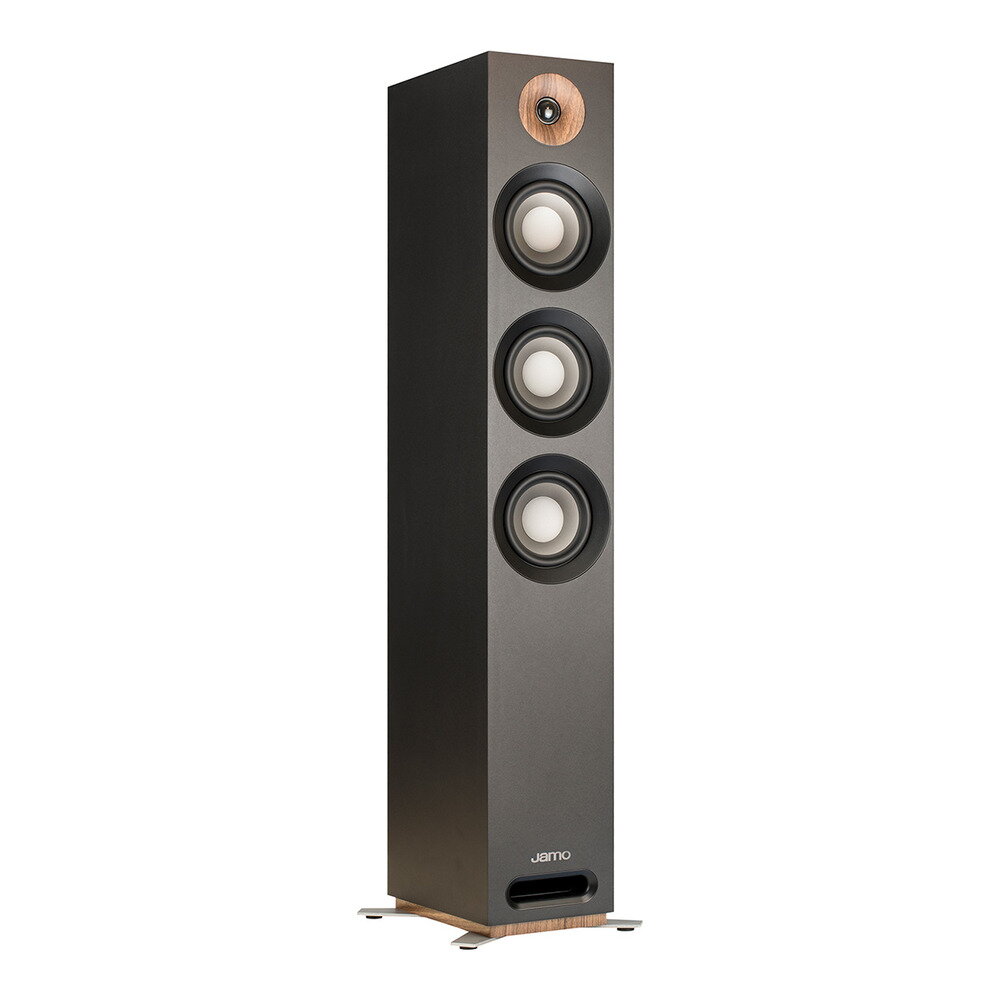

Jamo S809 Studio 8 Floor Standing speakers - Black

Flagship Scandinavian Elegance with Dolby Atmos Integration: The Ultimate Floorstanding Tower Speaker Pair

The Jamo S 809 is the flagship pair of floorstanding tower loudspeakers from the Studio 8 series, engineered to deliver reference-grade acoustic dynamics, authoritative bass, and refined European design to large home theater and stereo listening spaces. Driven by three 5-inch aluminized polyfiber woofers and a 1-inch soft dome tweeter nested inside a custom WaveGuide, this tower pair delivers seamless frequency balance with expansive dynamic scale. Outfitted with patent-pending integrated top-surface conductive connection points, the S 809 allows the immediate addition of optional Jamo S 8 ATM elevation modules for clean, wire-free Dolby Atmos surround immersion.

• Triple 5-Inch Aluminized Polyfiber Woofers: Outfitted with three lightweight, rigid driver cones to provide fast transient response, muscular low-frequency punch, and articulate midrange clarity.
• Integrated WaveGuide Acoustic Technology: Focuses high frequencies from the 1-inch soft dome tweeter to deliver wide, dynamic dispersion and lifelike vocal articulation across the primary listening zone.
• Seamless Wire-Free Dolby Atmos Integration: Features patent-pending metal fastener contacts on the top panel to mount and power optional Jamo S 8 ATM elevation speakers without visible external wiring.
• Front-Firing Slot Bass-Reflex Port: Enhances low-end extension and acoustic efficiency while allowing flexible placement directly against walls without introducing boomy resonance.

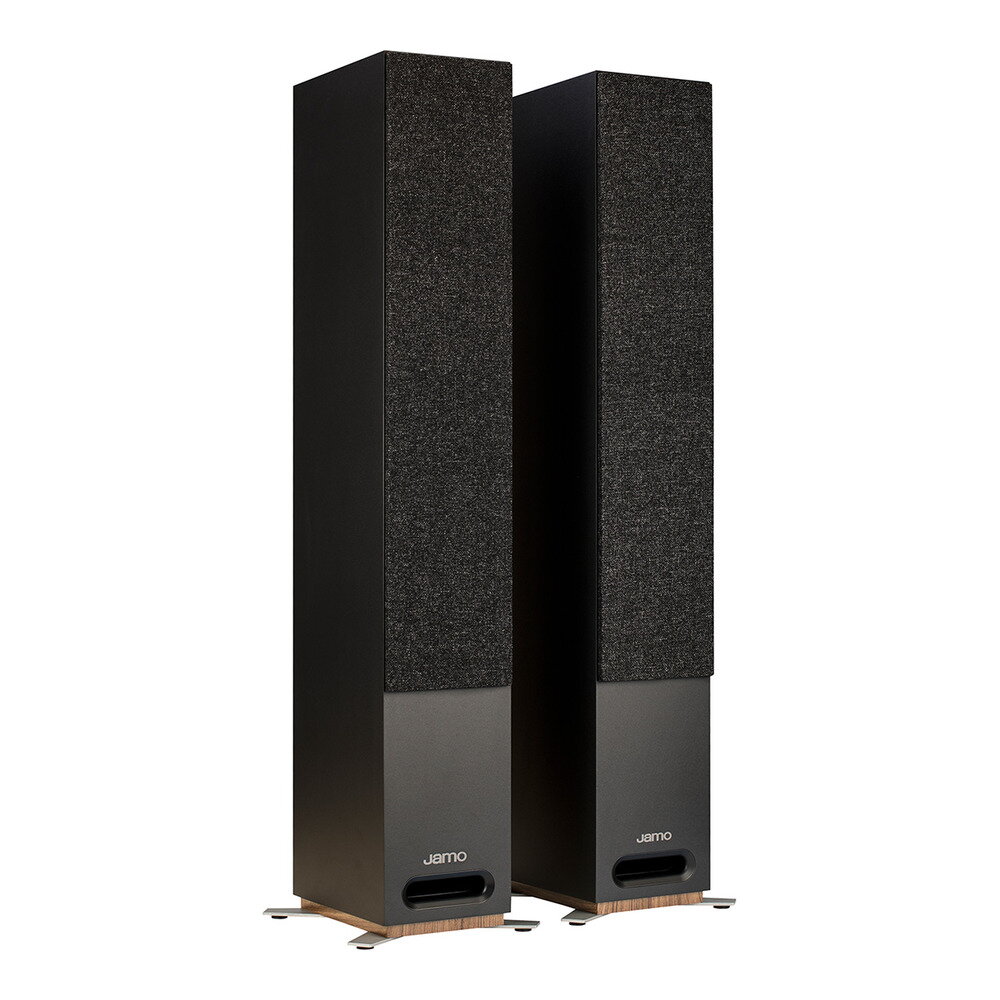

• Fully Magnetic Seamless Linen Grilles: Mounts securely without visible peg holes or push pins, offering a clean, contemporary Scandinavian aesthetic wrapped in textured tweed fabric.

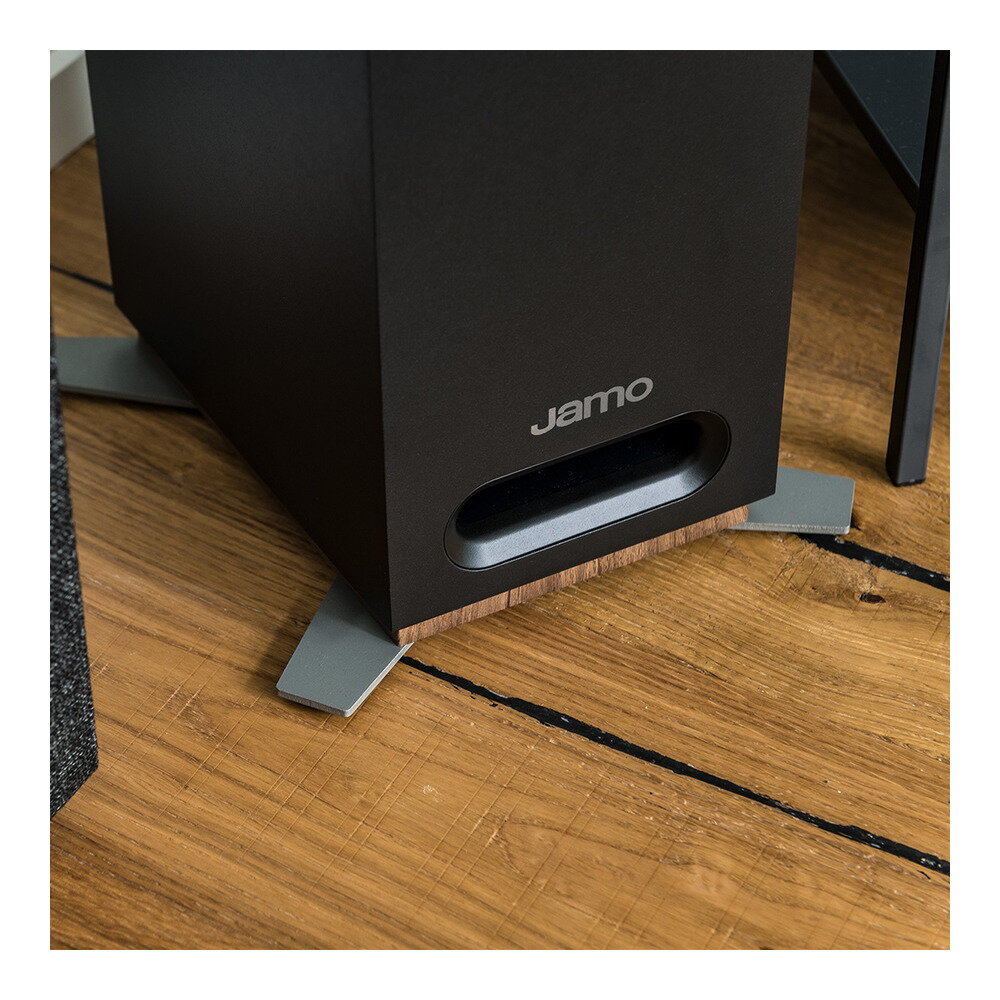

• Integrated Cast-Metal Outrigger Feet: Provides an ultra-stable acoustic foundation with sleek, modern European visual styling for both carpet and hard floor surfaces.

• Speaker Type: 2-Way Bass Reflex Floorstanding Tower Loudspeaker (Pair)
• Frequency Response: 37 Hz - 26,000 Hz (+/- 3dB)
• Nominal Impedance: 8 Ohms
• Sensitivity: 90 dB (2.83V / 1m)
• Continuous Power Handling (RMS): 120 Watts
• Peak Power Handling: 240 Watts
• High-Frequency Driver: 25 mm (1") Soft Dome Tweeter with Integrated WaveGuide
• Low-Frequency Drivers: 3x 127 mm (5") Aluminized Polyfiber Woofers
• Crossover Frequency: 2,000 Hz
• Enclosure Material: High-Density MDF with Front-Firing Slot Port
• Dolby Atmos Readiness: Integrated Top Conductive Fasteners for Jamo S 8 ATM Height Speakers
• Input Terminals: Dual Gold-Plated Binding Post Pairs (Main Channel & Height Channel Pass-Through)
• Speaker Dimensions (Each): 1042 mm x 191 mm x 252 mm / 41.02" x 7.52" x 9.92" (H x W x D)
• Product Net Weight (Each): 13.6 kg / 29.98 lbs
• What's in the Box:
  • 2x Jamo S 809 Floorstanding Tower Speakers
  • 2x Magnetic Linen Fabric Grilles
  • 8x Outrigger Metal Feet with Mounting Screws
  • 8x Floor Protection Isolation Pads / Spikes
  • 1x User Manual and Warranty Documentation
