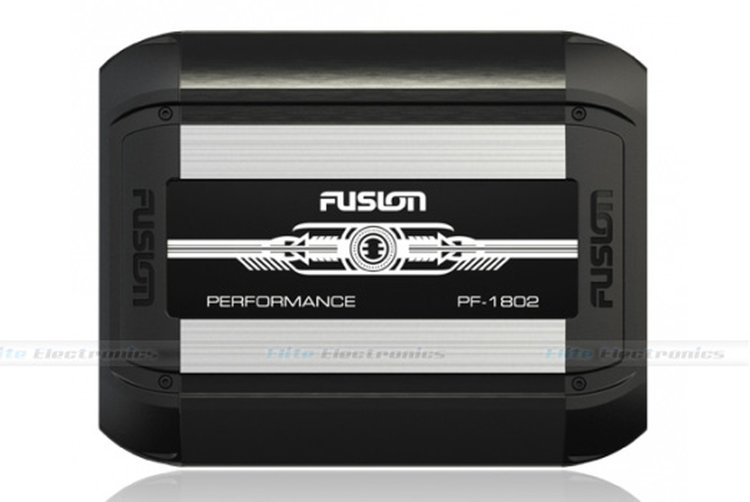

Fusion PF-1802 2-Channel 1200W Amplifier

EAN: 9419523301999 SKU: PF-1802
Fusion PF-1802 2-Channel 1200W AmplifierFusion PF-1802 2-Channel 1200W AmplifierFusion PF-1802 2-Channel 1200W Amplifier
$179
$179$143.85
Shipping Calculator
  • Standard to Metro (4-10 biz days)
  • Express to Metro (1-4 biz days)
  • Standard to Non-metro (10-20 biz days)
  • Express to Non-metro (2-6 biz days)
  • Pickup (Same or next biz day)
  • Longer ETA applies to NT, WA, NZ & US locations.
  • The above time frames are estimates only. The actual delivery time is dependent on the shipping location, shipper's processing capacity and other unforeseeable factors i.e. natural disasters, accidents etc. We cannot be held responsible for any courier-related delivery delays.
This product is discontinued
  • Availability:Out of Stock
  • Model: Fusion PF-1802
 Sold Out
Pickup at our Deer Park VIC warehouse. Schedule Pickup »
schedule pickup warehouse

Performance Series 1200 Watt 2-Channel Amplifier



Flexible installation solutions
High and low level input connections requires CA-HIC13

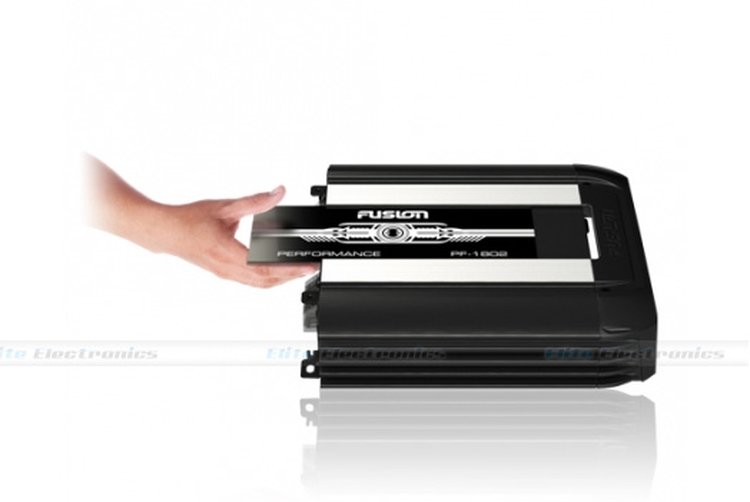

Discrete install end caps
Covers and protects amplifier controls and cable connections.

4-way protection circuit
Thermal / reversed power polarity / dc offset and low voltage protection.

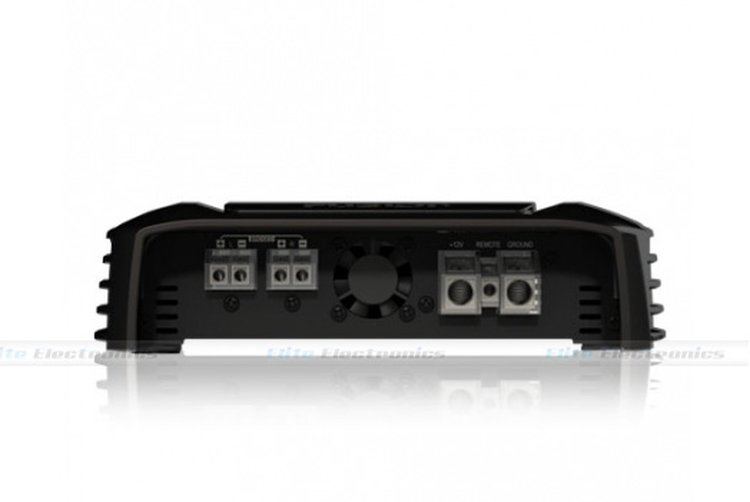

Heavy duty connector block
Supports maximum current supply.

Integrated cooling fan
Regulates temperature for sustained performance

Remote bass ready
Compatible with the CA-RLC13 bass remote (sold separately)
Amplifier Type Class-AB
Bass Boost @ 45Hz 0 - +18dB
Crossover Range 50Hz - 400Hz
Damping Factor Greater than 200
Frequency Response 20Hz - 20kHz
High and Low Pass Crossover 12dB per Octave
High Level Input Range 1 Volt to 30 Volts
Low Level Input Range 0.35 Volts to 10 Volts
Minimum load impedance 2 Ohm stereo and 4 Ohm bridged
Number of Channels 2
Operating Voltage 10.5 - 16 Volts
Power (Watts) 1200
Power Requirements 12V DC (Negative Ground)
Recommended Minimum Power/Ground 4 Gauge (AWG) Cable
RMS Power Output @ 14.4V 1% THD+N 90W x 2 (@ 2 Ohm)
RMS Power Output @ 14.4V 1% THD+N 180W x 1 (@4 Ohm Bridged)
RMS Power Output @ 14.4V 1% THD+N 65W x 2 (@ 4 Ohm)
Signal to Noise Ratio >50dB
Dimension 51 x 246 x 200 mm (H x L x W)
