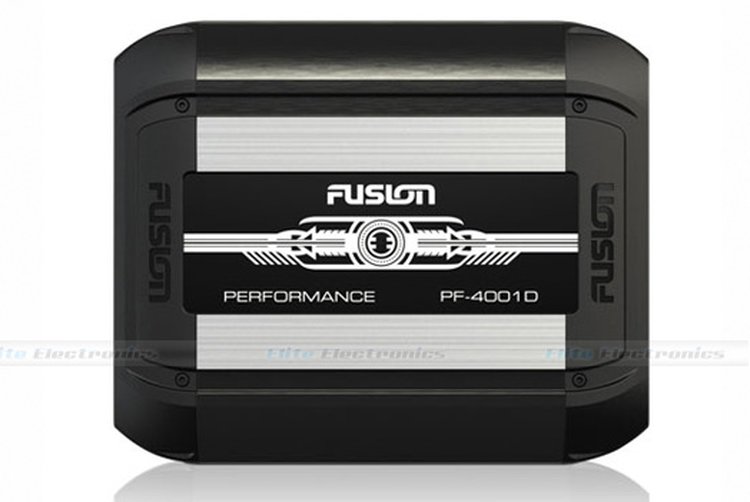

Fusion PF-4001D Monoblock 1600W Amplifier
EAN: 9419523301968 SKU: PF-4001D
SHOWROOM NOW OPEN
Visit us at 3/229 Robinsons Road, Ravenhall, VIC
Performance Series 1600 Watt Monoblock Amplifier
Flexible installation solutions
High and low level input connections requires CA-HIC13
Class-D amplifier technology
Increased power output and thermal transfer for greater reliability.

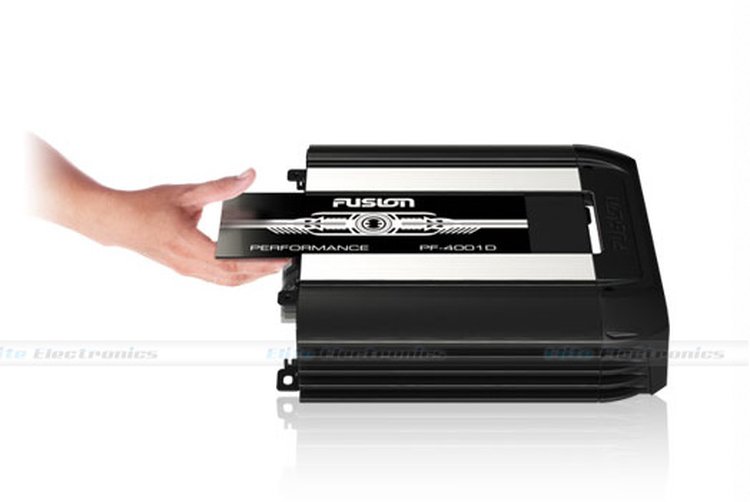

Custom insert
Customise your fusion install with the performance series removable top panel.
Discrete install end caps
Covers and protects amplifier controls and cable connections.
4-way protection circuit
Thermal / reversed power polarity / dc offset and low voltage protection.
Heavy duty connector block
Supports maximum current supply.
Integrated cooling fan
Regulates temperature for sustained performance
Remote bass ready
Compatible with the CA-RLC13 bass remote (sold separately)
| Amplifier Type | Class-D |
| Bass Boost @ 45Hz | 0 - +18dB |
| Damping Factor | Greater than 200 |
| Frequency Response | 10Hz - 250Hz |
| High and Low Pass Crossover | 12dB per Octave |
| High Level Input Range | 1 Volt to 30 Volts |
| Low Level Input Range | 0.35 Volts to 10 Volts |
| Low Pass Cross Over Range | 50Hz - 250Hz |
| Minimum load impedance | 2 Ohm |
| Number of Channels | 1 |
| Operating Voltage | 10.5 - 16 Volts |
| Power (Watts) | 1600 |
| Power Requirements | 12V DC (Negative Ground) |
| Recommended Minimum Power/Ground | 4 Gauge (AWG) Cable |
| RMS Power Output @ 14.4V 1% THD+N | 250W x 1 (@4 Ohm) |
| RMS Power Output @ 14.4V 1% THD+N | 400W x 1 (@ 2 Ohm) |
| Signal to Noise Ratio | >50dB |
| Subsonic Crossover Range | 10Hz - 40Hz |
| Subsonic Filter | 12dB per Octave |
| Dimension (LxHxW) | 236x51x200mm |
