Kenwood KSC-PSW88 8" Compact Powered Subwoofer

Kenwood KSC-PSW8 8" Compact Powered Subwoofer

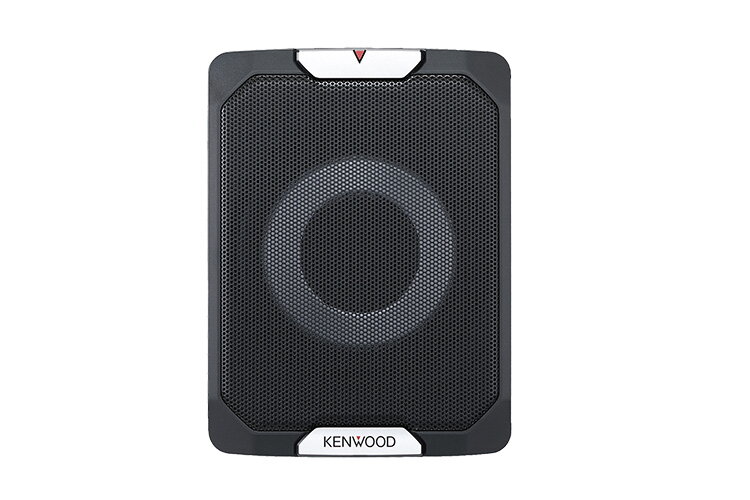

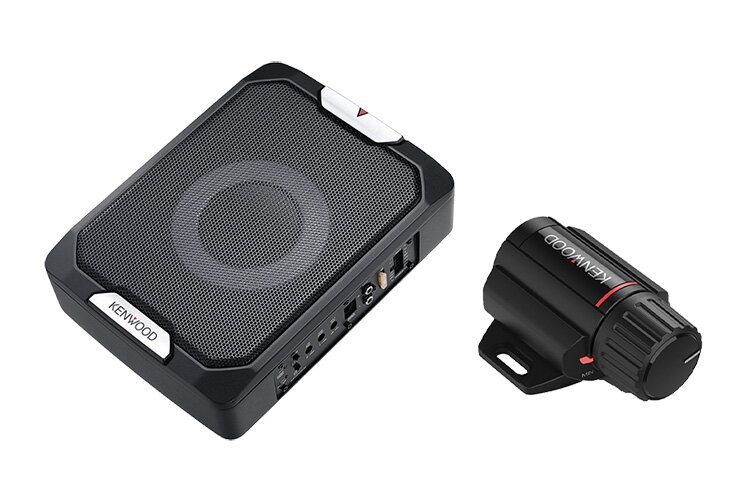

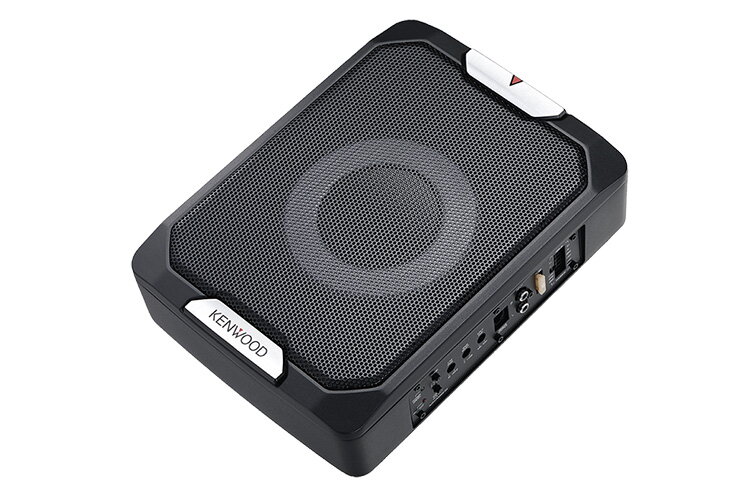

Compact Design. Powerful Low-End Performance. The Kenwood KSC-PSW8 is a compact 8-inch powered subwoofer with a built-in Class D amplifier and wired remote, designed to deliver strong, clear bass in tight vehicle installations without the need for a separate amp or large enclosure.

• All-in-one design: Integrated 8″ subwoofer and amplifier system simplifies installation and saves space.
• Class D amplifier: Built-in high-efficiency amp delivers greater output and lower heat for reliable bass performance.
• Wired remote controller: Included remote provides easy adjustment of volume, low-pass filter and phase from the driver’s seat.
• Low-pass filter control: Variable 50–125 Hz low-pass filter allows seamless integration with main speakers.
• Speaker-level and RCA inputs: Accepts both factory speaker signals and aftermarket RCA signals for flexible system integration.
• Phase switch: Remote-mounted 0°/180° phase switch helps align bass output with vehicle acoustics.
• Compact size: Slim enclosure (350 × 240 × 75 mm) fits under seats or in small spaces while still delivering impactful bass.

• Model: KSC-PSW8
• Type: Powered compact subwoofer system
• Woofer size: 8″ (20 cm)
• Maximum power output: 250 W peak
• RMS power handling: 150 W
• Low-pass filter range: 50 Hz to 125 Hz (-12 dB/oct)
• Frequency response: 35 Hz to 150 Hz
• Input types: RCA line input + speaker-level input
• Phase control: 0° / 180°
• Dimensions (W × D × H): 350 × 240 × 75 mm
• What’s in the Box:
  • Kenwood KSC-PSW8 powered subwoofer unit
  • Wired remote controller
  • Power/signal wiring harness including fuse
  • Mounting brackets and hardware
  • Instruction manual & warranty sheet
