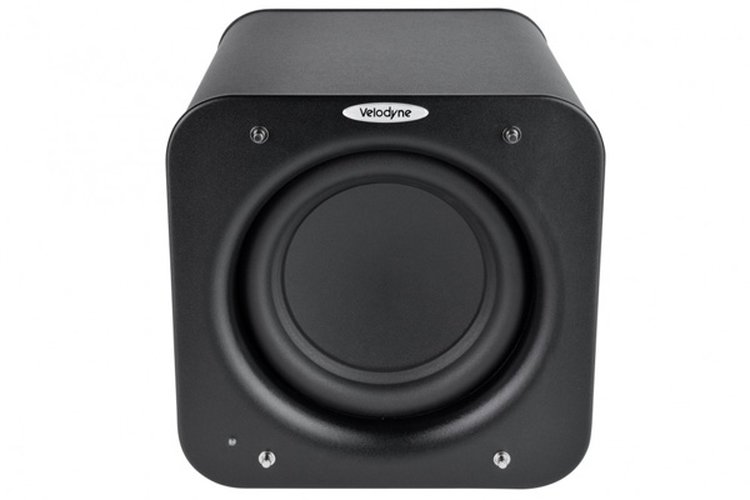

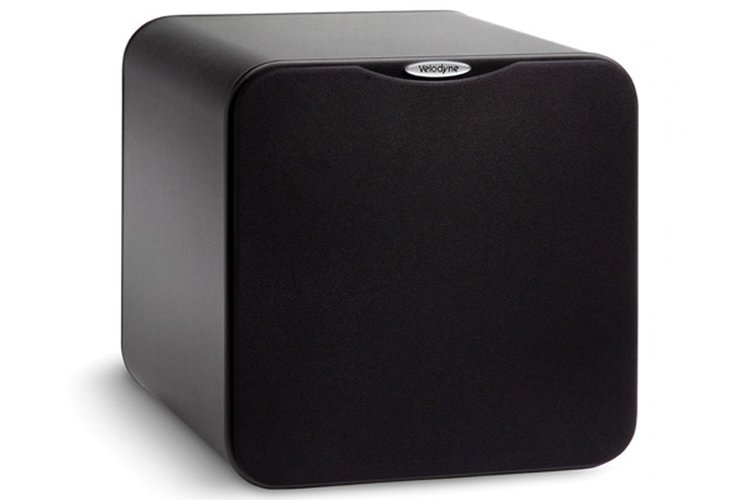

Velodyne SPL-800i MiniVee 8" Subwoofer (Black)

Velodyne SPL-800i MiniVee 8" Subwoofer

There's nothing small about the SPL-800i when it comes to power or performance. The 8" SPL-800i starts with Velodyne's highest quality Class D digital amplifier cranking out 2000 watts dynamic power and 1000 watts RMS. Look inside and you'll find a massive 12.7 lb. magnet structure, a stiff Kevlar-reinforced driver cone, oversized spider and vented pole piece. Add it all up and you have a sub that produces deep, loud bass with low distortion. All of this comes wrapped up in a stylish black pica matte vinyl wrap.

Number of Speakers:
1

Total RMS Power:
1000 Watts

Speaker Dimensions:
(H x W x D) 27 x 26 x 33cm

Weight:
16kg

DIMENSIONS

Speaker dimensions (H x W x D) 27 x 26 x 33cm
Subwoofer: 8” forward firing (6.5” piston diameter)

GENERAL

Magnet Structure: 5.76kg
Frequency Response: 28-120 Hz
High Pass Crossover: 80Hz (6 dB/octave)
Low Pass Crossover: 40-120Hz (12 dB octave initial, 48 dB octave ultimate) or bypass with Subwoofer Direct
Phase Control: 0 or 180 degrees
Protection: Dynamic compression
Weight: 16kg

DRIVER

8” (6.5” piston) forward firing
2.5” dual layer voice coil
Die-cast aluminium baske

SIGNALS

Outputs: Line-Level, high pass crossover, 80Hz, 6 dB/octave
Inputs: Gold plated RCA Line and Speaker Level Inputs

AMPLIFIER

1000 watts RMS power
