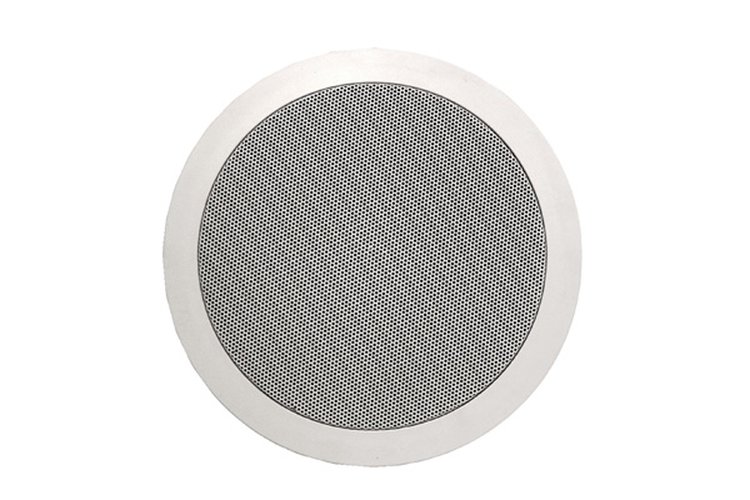

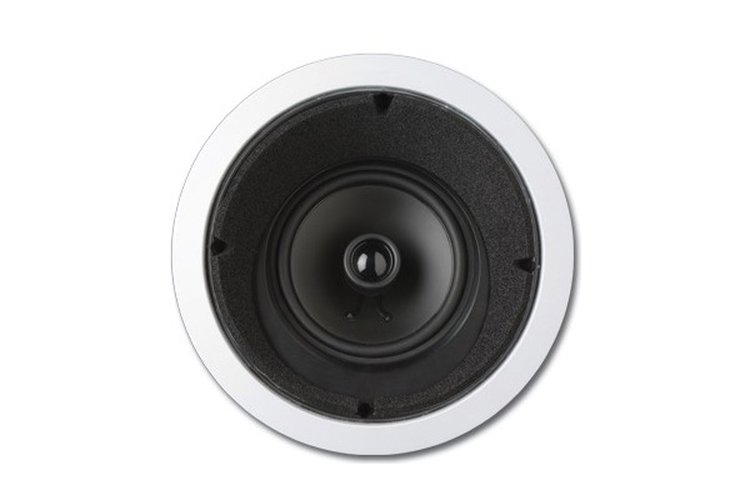

ArchiTech Pro AP-615 CLRS 6.5" 2-Way Angled In-Ceiling Speaker

ArchiTech Pro AP-615 LCRS 6-1/2" 2-Way Round Angled In-Ceiling CLR Speaker(Each)

Pro Series offers a variety of in-wall and in-ceiling loudspeakers. Long throw poly woofers with butyl rubber surrounds. Pivoting 1" Mylar soft dome ferro-fluid cooled tweeters. The frame and grille may be painted to match mounting surface.

15 degree angle enables significantly enhanced cinematic sound imaging when room layouts dictate ceiling mounted loudspeakers. The AP-615 LCRS is a 6 1/2" 2-way round In-Ceiling Loudspeaker. Sold as individual speaker.

FEATURES

• Poly woofers with butyl rubber surrounds
• Far-forward woofer mount with pole-mounted tweeter
• minimizes diffraction while maximizing dispersion
• High temperature Poly imide voice coils
• Proven Mounting System
• Frame and Grilles may be painted to match mounting surface
• Sold as individual speaker

SPECIFICATIONS

Model Number:
AP-611 - 6-1/2" 2-way Single Point Stereo

Frequency Response:
45Hz - 20kHz ± 3 dB

Power Handling:
50 watts nom. 100 max. both channels combined

Sensitivity:
91dB 1 watt / 1 meter

Tweeter:
Dual (left & right) 3/4" Mylar ferro-fluid cooled dome tweeters

Grille:
Perforated Metal Grille: MGR-622
Impedance:
8 ohms nominal

Pre-construction Bracket:
Pre-construction bracket: RIR-6

Vapor Dome / Pre-Con Bracket:
VPD-6

Bridge for T-Bar Ceiling:
PB-6

Plenum Dome:
PE-8

DIMENSIONS & WEIGHTS

Overall Dimensions:
8-3/8" Round

Cut-out Dimensions:
7-3/8" Round x 2-7/8 deep

Shipping Weight:
N/A

Net Weight:
N/A
