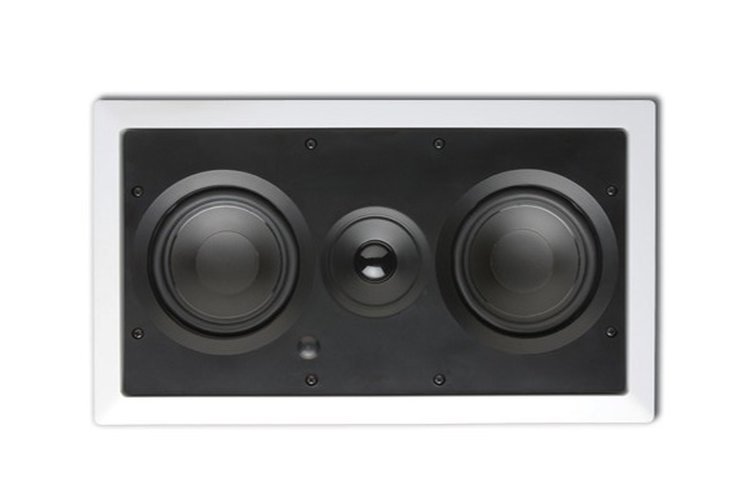

ArchiTech Pro AP-525 LCRS Dual 5-1/4" 2-Way In-Wall Loudspeaker (Each)


Pro Series offers a variety of in-wall and in-ceiling loudspeakers. Long throw poly woofers with butyl rubber surrounds. Pivoting 1" Mylar soft dome ferro-fluid cooled tweeters. The frame and grille may be painted to match mounting surface.


The AP-525 LCRS is a Dual 5 1/4" 2-way rectangular Center / All Channel - LCRS


Magnetically Shielded
5.1, 6.1, & 7.1 Home Theater Systems. Specially designed for use in left, center, right & surround loudspeaker positions of home theater systems.


FEATURES


  • Poly woofers with butyl rubber surrounds
  • Far-forward woofer mount with pole-mounted tweeter
  • minimizes diffraction while maximizing dispersion
  • High temperature Poly imide voice coils
  • Proven Mounting System
  • Frame and Grilles may be painted to match mounting surface
  • Sold as individual speaker

SPECIFICATIONS


Model Number:
AP-525 LCRS - Dual 5-1/4" 2-way Loudspeaker

Frequency Response:
45Hz - 20kHz ± 3 dB

Power Handling:
50 watts nom. 100 max. both channels combined

Sensitivity:
91dB 1 watt / 1 meter

Tweeter:
Pivoting 1" Mylar soft dome ferro-fluid cooled tweeters

Grille:
Perforated Metal Grille: MG-LCR
Impedance:
8 ohms nominal

Pre-construction Bracket:
Pre-construction bracket: RIB-LCR

DIMENSIONS & WEIGHTS


Overall Dimensions:
9" x 15-3/4"

Cut-out Dimensions:
7-7/8" x 14-7/16" x 3-1/2" deep

Shipping Weight:
N/A

Net Weight:
N/A
