+2 Years Extended Warranty

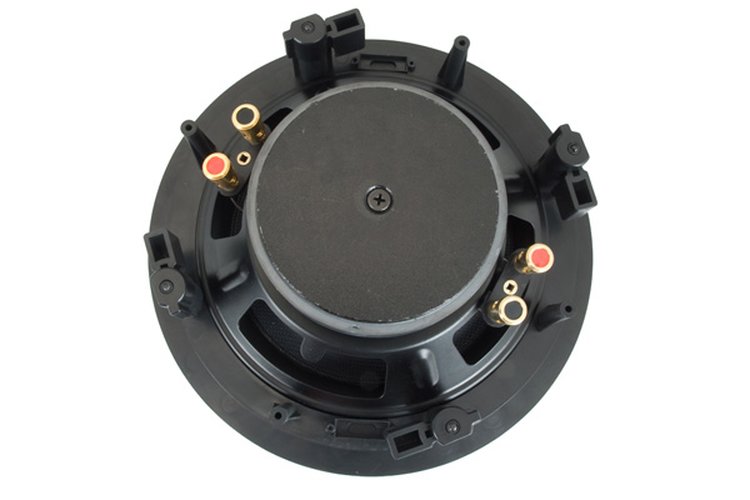

The ArchiTech 8" in-ceiling custom installation single point stereo speakers combine the full frequency audio experience of 2 separate audio speakers but in a single space-saving chasis. The SC-822f is the right solution where space is limited but sound quality cannot be sacrificed.
Our ArchiTech Series cones are made from genuine DuPont™ Kevlar® fiber, which is an exceptional choice for high performance woofers. Its incredible strength enables low distortion music reproduction, while its lightness provides great detail and musicality. And it is amazingly durable for long life and environmental stability. Kevlar® is 5 times as strong as steel of the same weight.
These unique properties have enabled Kevlar® to become a favorite material for applications as varied as bullet-proof vests, automotive parts, ropes for the Mars Pathfinder mission - and for the ArchiTech Series - cones for superb woofers.
The ArchiTech Series is an excellent choice for custom installation applications where high quality music reproduction is required and rugged construction is appreciated. The Lifetime Limited Warranty is one indication of just how robust this family of loudspeakers really is.
Model Number: SC-822f - 8" 2-way Single Point Stereo
Frequency Response: 35Hz - 20kHz ± 3 dB
Power Handling: 60 watts nom. 120 max. both channels combined
Sensitivity: 91dB 1 watt / 1 meter
Tweeter: Dual (L+R) 3/4" dome tweeters

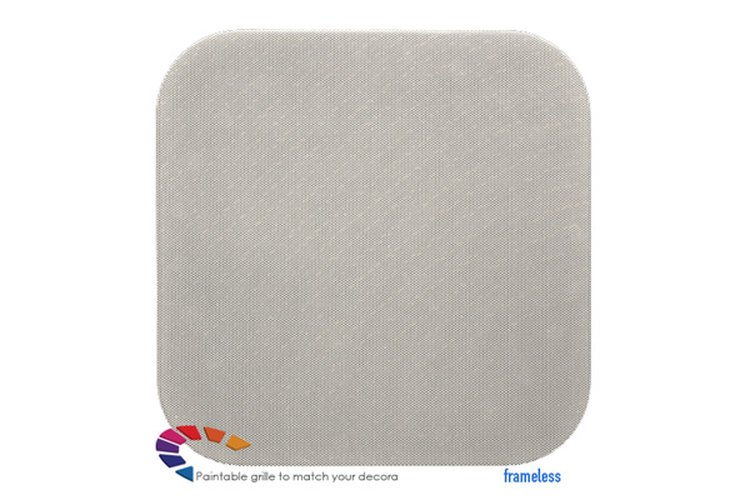

Frameless Grille: Magnetically Attached - Perforated Frameless Metal Grilles
Round and Square option
Round Model: MGR-8f Square Model: MGS-8f
Impedance: 8 ohms nominal
Pre-construction Bracket: Pre-construction bracket: RIR-8
Vapor Dome / Pre-Con Bracket: VPD-8
Bridge for T-Bar Ceiling: PB-8
Plenum Dome: PE-8
Overall Dimensions: 9-7/8" Round
Cut-out Dimensions:8-5/8" Round x 3-7/8" deep
Shipping Weight: N/A
Net Weight: N/A
