ArchiTech Kevlar SC-820F 8" 2-Way 50W RMS In-Ceiling Speakers

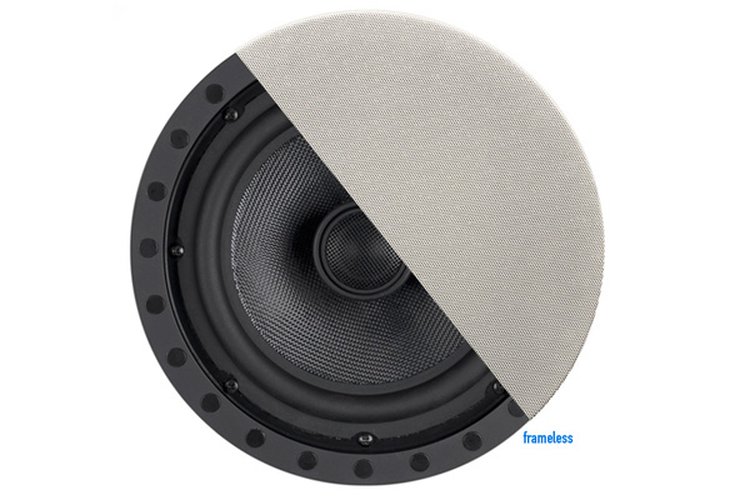

Architech SC-820F 8" 2-Way Kevlar Series Frameless In-Ceiling / Wall Speakers (Pair)
Our ArchiTech Series cones are made from genuine DuPont™ Kevlar® fiber, which is an exceptional choice for high performance woofers. Its incredible strength enables low distortion music reproduction, while its lightness provides great detail and musicality. And it is amazingly durable for long life and environmental stability. Kevlar® is 5 times as strong as steel of the same weight.
These unique properties have enabled Kevlar® to become a favorite material for applications as varied as bullet-proof vests, automotive parts, ropes for the Mars Pathfinder mission - and for the ArchiTech Series - cones for superb woofers.
The ArchiTech Series is an excellent choice for custom installation applications where high quality music reproduction is required and rugged construction is appreciated. The Lifetime Limited Warranty is one indication of just how robust this family of loudspeakers really is.
FEATURES
- Woven Kevlar® woofers with butyl rubber surrounds
- Frameless Grille

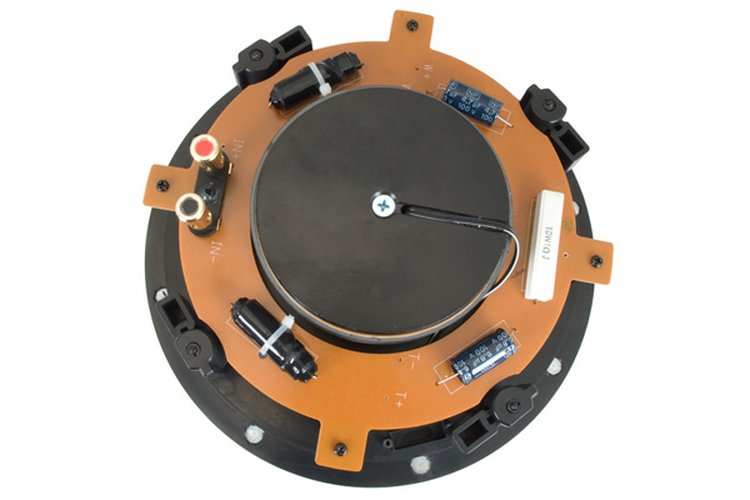

- 12 dB/octave crossover
- Proven Mounting System
- Frame and Grilles may be painted to match mounting surface
- Sold and Shipped in Pairs
SPECIFICATIONS
Model Number:
SC-820f - 8" 2-way Round In-Ceiling Loudspeaker
Frequency Response:
35Hz - 20kHz ± 3 dB
Power Handling:
50 watts nom. 100 max.
Sensitivity:
91dB 1 watt / 1 meter
Tweeter:
1" pivoting textile soft dome tweeter

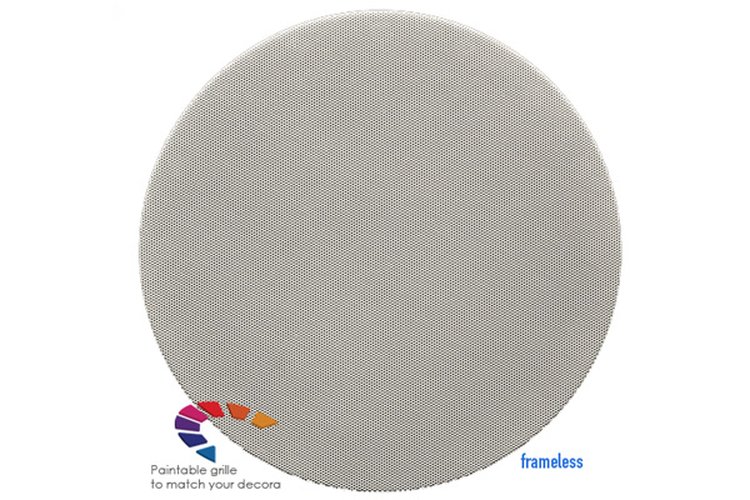

Frameless Grille:
Magnetically Attached - Perforated Frameless Metal Grilles
All Weather

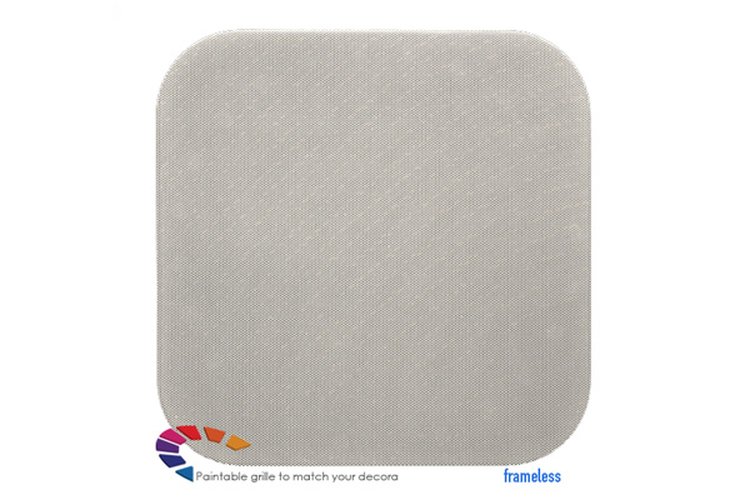

Round and Square option
Round Model:
MGR-8f
Rectangular Model:
MGS-8f
Impedance:
8 ohms nominal
Pre-construction Bracket:
Pre-construction bracket: RIR-8
Vapor Dome / Pre-Con Bracket:
VPD-8
Bridge for T-Bar Ceiling:
PB-8
Plenum Dome:
PE-8
DIMENSIONS & WEIGHTS
Overall Dimensions:
9-7/8" Round
Cut-out Dimensions:
8-5/8" Round x 3-7/8" deep
Shipping Weight:
N/A
Net Weight:
N/A
