Yamaha XDA-QS5400RK MusicCast Multi-Room Streaming Amplifier 8 Channel

MusicCast Multi-Room Streaming Amplifier (Four Zone/ Eight Channel)

A specially designed for custom integration of whole-home audio systems, the QS provides 4 zones of audio streaming and 8 channels of high-performance audio amplification in an ultra-slim, 1U-high, rack-mountable enclosure. It is expandable and exceptionally flexible, the QS works with the MusicCast multi-room audio system, which allows it to be linked with home theatre AV receivers, soundbars and Hi-Fi gear in a wide of variety of configurations.

• Streams 4 zones of audio per unit, expandable tp 32 zones with simultaneous playback in linked groups of up to 20 zones each
• Built-in Spotify, Pandora, SiriusXM Music for Business, SiriusXM Internet Radio TIDAL, Napster, Deezer, & more, plus access to music libraries and linked external sources
• Constructed for custom integration of a MusicCast multi-room audio system connected by going through a Ethernet LAN in a cabinet or rack
• 8 channels of audiophile-grade Class D amplification assignable to any zone, bridgeable and 4-ohm capable, featuring a unique ground loop/hum-free circuit design
• 1U-high, rack-wide enclosure, faceplate and removable rack ears included
• Easy control via free MusicCast app and 3rd-party control systems

Ingenious Integration

Constructed from the ground up for custom installation, the "QS"(Quad Streamer) represents the ultimate integration solution for filling every room with outstanding sound.

Slim yet Powerful

The QS packs 4 rooms of audio streaming and 8 channels for audiophile-grade amplification into a remarkably slim, 1U-high encloser, allowing you to fully-optimise your valuable rack real estate.

Expands Easily

Multiple QS units can be used simultaneously to expand up to 32 zones with simultaneous playback of linked groups of up to 20 zones each. In addition to this, the QS offers 4 zones pre-outs that enable it to be combined with the XDA-AMP5400RK, a companion multi-room Amp, to provide more speaker coverage for large areas in a household or just more power in general. The pre-outs may also be used to connect powered subwoofer amps or subwoofers.

A Family Like No Other

As being a member of the MusicCast family, the QS integrates seamlessly with Yamaha soundbars, AV receivers and more. Now everything, from a bedroom TV system to in-ceiling speakers in the kitchen, or a surround sound home theatre. It can all work beautifully together.

Stream It All

Access all your favourite music, including built-in streaming services and music libraries on tablets, smartphones and network-attached storage devices.
(Streaming services availability varies by region and may change or be discontinued without notice.)

Plays Nice With Everything

Every wanted to hear vinyl records or TV sound throughout the home? Simply link to a MuscicCast receiver, turntable or soundbar to access audio from virtually any source.

3rd Party Control

The QS supports IP control by 3rd party control systems used in many of today's most advance smart homes.

There's an Amazing App for It

It's effortless to set up and control with the free MusicCast app. It offers unique personalisation features including the ability to rename, rearrange and hide sources, and to assign custom images to rooms.

Uniquely Yamaha

The audio performance of the Quad Streamer is further enhanced with a suite of exclusive Yamaha technologies, including our Advanced bass Extention, Volume Adaptive EQ and Compressed Music Enhan

Audiophile-Grade Amplification

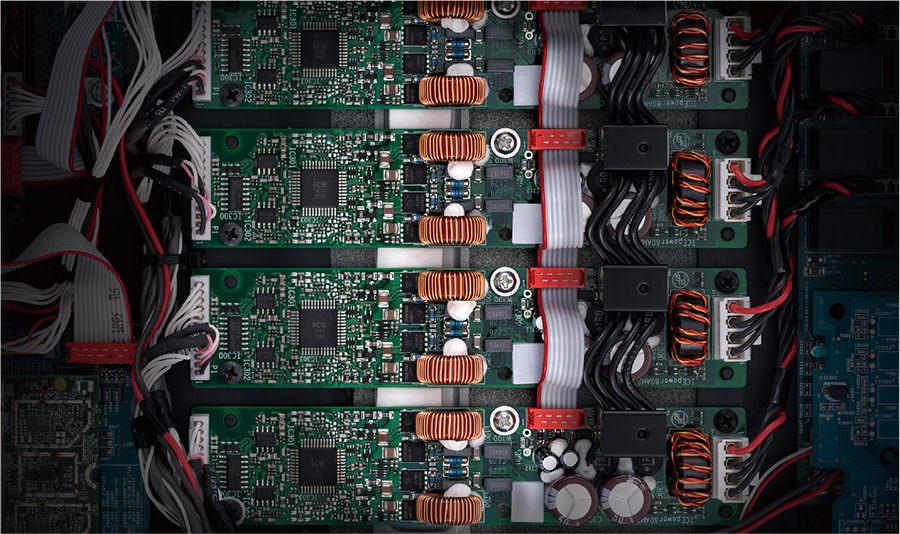

No ordinary amp, the Quad Streamer employs ultra-efficient ICEpower integrated circuits to deliver 8 channels of pristine, musically-dynamic digital amplification at 50W/channel (8ohms) with an outstanding 10Hz to 22kHz frequency response and 106 dB signal-to-noise ratio. It is 4ohm capable at 100W/channel and bridgeable to 200W/channel (8ohms).

Say Goodbye To Ground Loop Hum

Ground loop hum is a common and vexing side effect of connecting a bunch of electronics together. The QS takes care of all that with a brilliantly engineered differential circuit design. Sometimes its what you don't hear that sounds the best.

High-Resolution Audio

Experience every detail of your favourite recordings with the support of the QS high-res audio playback. It produced up to 192 kHz/24-bit and applies the same premium ESS Sabre DACs and PML capacitors used in the flagship AVENTAGE AV receivers.

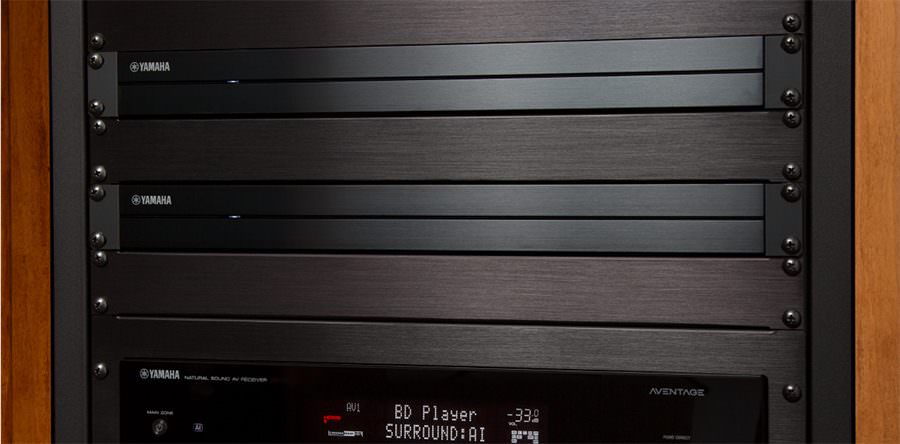

Versatile Installation

Remove the ears for shelf installation or mount it in a rack with the included ears. The included magnetic faceplate discourages tampering & provides an impeccable cosmetic finish.

Custom-Friendly Connectivity and Control

The Quad Streamer is truly made for custom integration, with a detachable AC cable for smart connectivity, dual RJ-45 Ethernet ports, Euroblock-style speaker connectors, and IR, IP and 12 V Trigger out jacks for versatile control.

3 Ways to Handle External Sources

Furthermore to supporting external sources through linking with MusicCast receivers and soundbars, the QS offers an AUX input that can be chosen for playback in any zone and a Cut-in input that will automatically senses an input signal and temporarily overrides the selected sources. This allows you the flexibility to integrate CD changers, media players or even paging systems. Also, Thru-Outs let you set up a bus to additional QS units.

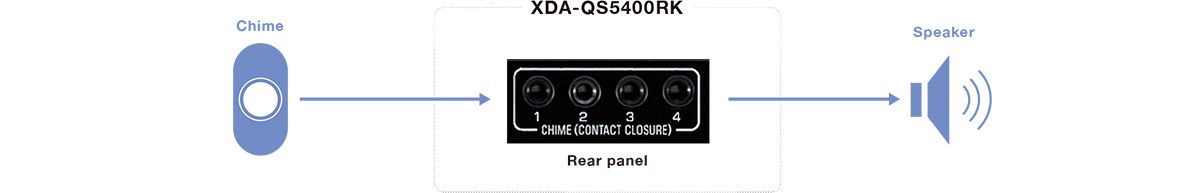

Unique Chime Generator

The chime contact closure inputs will allow you to generate a doorbell chime—for example, an alert for a gate from a standard switch. Chime sound selection and output zones can be configured by using the Web Setup.

Web Setup

Access Advanced or Basic settings via a Web Setup menu & store commonly used profiles for faster configuration of future projects.
