Elite Screens ELECTRIC125H-AUHD 125" 16:9 Acoustically Transparent

Spectrum ELECTRIC125H-AUHD 125" Electric 16:9 Motorized Projector Screen s

• 1.0 Gain acoustically transparent screen material
• Standard infrared remote control easy control
• Built-in 12 volt trigger enables synchronized control through the projector for professional installation
• Light weight construction ships fully assembled and with standard 3-prong plug plug & play
• 2 Years manufacturer's warranty

Screen Material

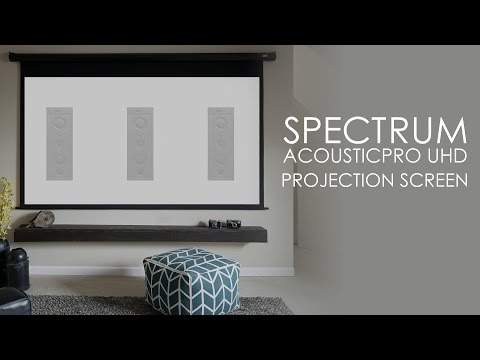

The AcousticPro UHD has a matte white surface with a 1.0 gain that provides excellent color neutrality for superb color reproduction along with wide diffusion uniformity. The angular weave material is designed to allow wall-speaker sound to breathe through the screen while eliminating the visual artifact known as moiré effect. The precision angled mesh of the material allows viewers to enjoy a visually superior presentation with strong color neutrality and artifact-free performance. The material is perfect for use with native 1080P projectors for home cinema and commercial applications.

What is Acoustic Transparency?

Features

• Acoustically Transparent Matte White (angular weave)
• Gain: 1.0 / Viewing Angle: 160° (80° L/R)
• Superb off-axis luminance
• Optimal color neutrality; color shift is not compromised
• Designed for 1080P (1920x1080) projector resolutions
• Black backing eliminates backlighting artifacts from light bleed-through (only on fixed frame models)
• Mean attenuation of -2.05dB at 8k – 20kHz
• 16:9 aspect ratio
• 125" diagonal size

Total Control

• Infrared (IR) remote control
• Detachable 3-way wall switch
• Built-in 5-12 volt trigger port (RJ-45) enables Drop/Rise operation to synchronize with the projector's power
• Low-voltage internal IR/RF receivers
• 12 Volt Trigger Cable
• Optional ZR800D IR Universal Remote Control, RF Remote, wireless 5-12 volt trigger, Universal 5-12 volt trigger (for projectors that don't have a trigger output port) and In-wall switch
• Installation
• Durable casing for wall/ceiling installations
• Bubble leveller included
• Ships fully assembled with 3-prong power connection ready to plug & play
• Optional in-ceiling trim kit and 6", 12", 18" L brackets

Quality and Reliability

• Synchronous motor allows silent operation with extended operational longevity and low power consumption
• Certified by AMX and CRESTRON
• GREENGUARD® Indoor Air Quality and GREENGUARD® Children & Schools Certified at a surprisingly affordable price.

• Product Type: Electric
• Screen Material: AcousticPro UHD
• Screen Format: HDTV (16:9)
• Mount: Wall/ Ceiling Mount
• Nominal Diagonal: 125"
• Viewing Dimensions: 109.0"W x 61.3"H
• Gain:1.0
• Viewing Angle: 160 Degrees
• Overall Dimensions: 5.5" H x 124.8" W x 5.5" D
• Case Color: Black
• In Box Items: IR Remote, 3 Way Wall Switch, 12V Trigger

Brochure	Download
User Guide	Download
Dimensions Table	Download
Parts List Diagram	Download
Motor Wiring Diagram-220v	Download
Dry Contact Connection	Download
AcousticPro1080P2 Material Sheet	Download
GREENGUARD Indoor Air Quality Certificate	Download
GREENGUARD Children & Schools Certificate	Download
