BluStream SP14AB-V2 4-Way 4K HDMI 2.0 Splitter wth Audio Breakout

EAN: 9340242002709 SKU: SP14AB-V2
BluStream SP14AB-V2 4-Way 4K HDMI 2.0 Splitter wth Audio BreakoutBluStream SP14AB-V2 4-Way 4K HDMI 2.0 Splitter wth Audio Breakout
$469
$469$399
Free Shipping Auswide
Get Shipping Quote
Full Australian Warranty
  • Express to Metro (1-3 biz days)
  • Standard to Metro (2-6 biz days)
  • Express to Non-metro (2-6 biz days)
  • Standard to Non-metro (5-20 biz days)
  • Pickup (Same or next biz day)
  • Longer ETA applies to NT, WA, NZ & US locations.
  • The above time frames are estimates only. The actual delivery time is dependent on the shipping location, shipper's processing capacity and other unforeseeable factors i.e. natural disasters, accidents etc. We cannot be held responsible for any courier-related delivery delays.
This product is discontinued
  • Out of Stock
  • Model: BluStream SP14AB-V2
 Sold Out
SHOWROOM NOW OPEN
Visit us at 3/229 Robinsons Road, Ravenhall, VIC
Image 1
Image 2
Image 3
Image 4
Image 5

4K HDMI 2.0 HDCP 2.2 4-Way Splitter w/ Audio Breakout & EDID Management

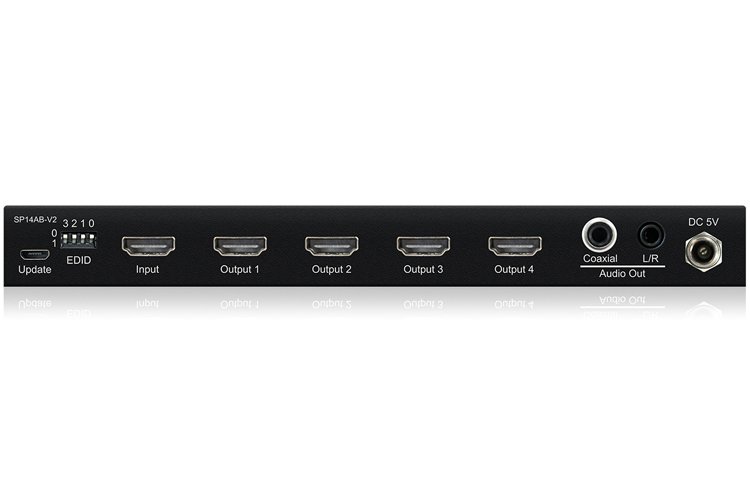

The SP14AB-V2 4K HDMI 2.0 splitter distributes a single HDMI source into four outputs simultaneously. The EDID configuration can be modified using the dip-switches located on the rear panel of the splitter. Doing so you must power-cycle the HDMI splitter after changes have been made in order for the EDID settings to update.

It supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K at 60Hz 4:4:4. The splitter includes an audio breakout from the selected HDMI input to associate analogue L/R and coaxial digital outputs. The extracted audio will be concurrent with the corresponding HDMI video output whilst the input must be PCM 2ch audio for the analogue audio outputs to work. (Splitter does not down-mix multi-channel audio signals)

  • Features 1 x HDMI input that's replicated to 4x HDMI outputs
  • HDMI audio breakout to analogue L & R audio & coaxial digital outputs concurrently
  • Advanced EDID management
  • Supports HDMI 2.0 18 Gbps specifications including HDR
  • Supports all industry standard video resolutions included VGA-WUXGA & 480i-4K
  • Supports up to 4K UHD 60Hz 4:4:4
  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD & DTS-HD Master Audio transmission
  • HDCP 2.2 support





* DISCLAIMER: Design, features and specifications subject to change without notice. Some features in videos on the Internet may not be available on all models, please contact us for the TECHNICAL SPECIFICATIONS for a complete list of features by model. This feature list is for reference only, please contact us to verify features and functionality.
