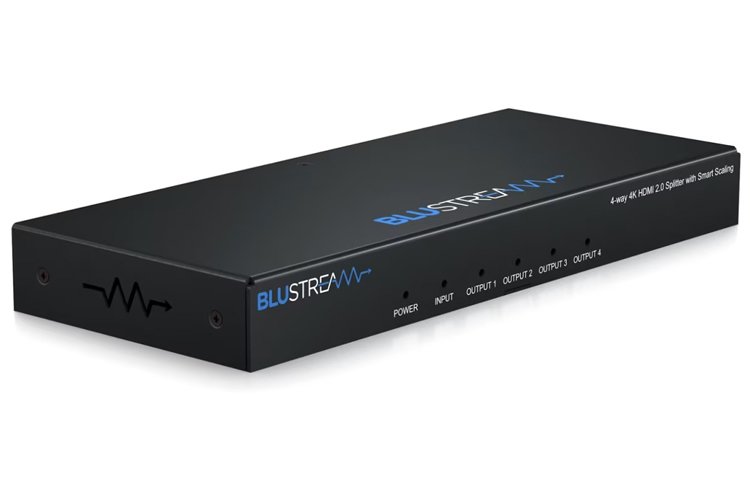

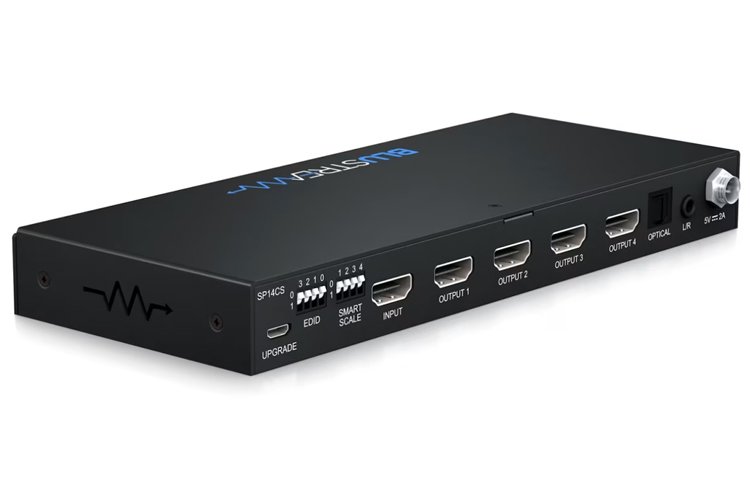

Blustream SP14CS 4-Way 4K HDMI 2.0 Splitter

4-Way 4K HDMI 2.0 HDCP 2.2 Splitter

The SP14CS 4K HDMI 2.0 splitter is designed to efficiently distribute a single HDMI source to four simultaneous outputs. Notably, it offers both digital (S/PDIF) and analog audio breakout features. This splitter supports full HDMI 2.0 and HDCP 2.2, ensuring compatibility with the latest standards. It can handle video resolutions up to and including 4K at 60Hz with a 4:4:4 color sampling format. Additionally, each output is equipped with automatic video down conversion, enhancing flexibility and performance in various display setups. Whether for professional or home entertainment use, the SP14CS provides a reliable solution for distributing high-quality audio and video signals to multiple devices simultaneously.

• 1x HDMI input replicated to 4x HDMI outputs
• Supports HDMI 2.0 18Gbps specification with HDR
• Supports up to 4K UHD 60Hz 4:4:4
• Video down-conversion on outputs for displays supporting lower video resolutions (e.g., 4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 content, maintaining original 4K UHD resolution on other outputs
• Supports all industry-standard video resolutions, including VGA-WUXGA and 480i-4K
• Supports known HDMI audio formats: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmission
• HDMI audio breakout to analog L/R audio and optical digital outputs concurrently
• CEC (Consumer Electronic Command) passes only between the source device and the sink connected to output 1
• Advanced EDID management
• HDCP 2.2 Support
