DS18 DB1030 Power Distribution Block 1x 0-GA In to 3x 0-GA Out

1/0 Gauge Input to Triple 1/0 Gauge Output Power Distribution Block

The DS18 DB1030 is a high-performance power and ground distribution block engineered for multi-amplifier car audio systems requiring massive current delivery. Designed to split a main heavy-gauge power wire into three separate 1/0 AWG lines, it allows custom installers to route high-current power efficiently without voltage loss. Constructed from solid nickel-plated brass and housed in a durable, heat-resistant protective cover, the DB1030 ensures maximum conductivity and electrical safety in high-output automotive audio installations.

• Triple Output Distribution: Easily splits a single 1/0 AWG main power or ground cable into three 1/0 AWG output connections for multi-amplifier configurations.
• High-Conductivity Brass Core: Solid brass block design maximizes current flow while minimizing electrical resistance and voltage drop.
• Corrosion-Resistant Nickel Plating: Premium nickel finish prevents oxidation, corrosion, and wear in tough vehicle electrical environments.
• Protective Insulated Cover: Snap-on, high-impact plastic casing insulates live connections to prevent short circuits and electrical shorts.
• Vibration-Proof Hex Terminals: Oversized recessed wire entry ports equipped with heavy-duty hex set-screws ensure a tight, reliable cable connection.

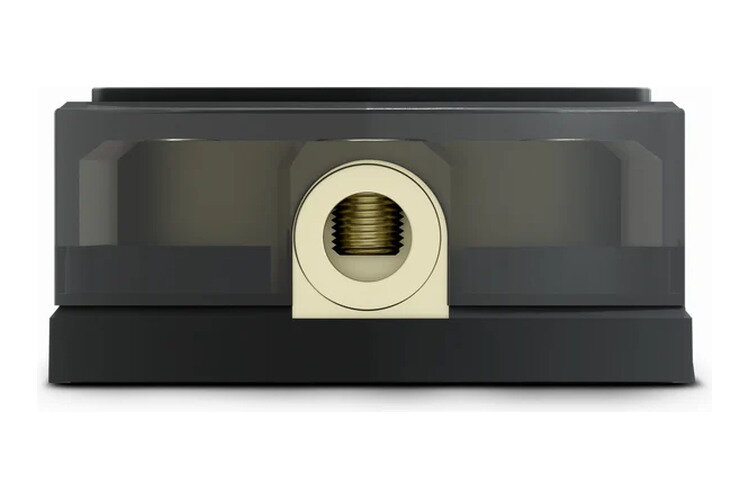

• Input Port: 1x 1/0 AWG (Gauge) Input

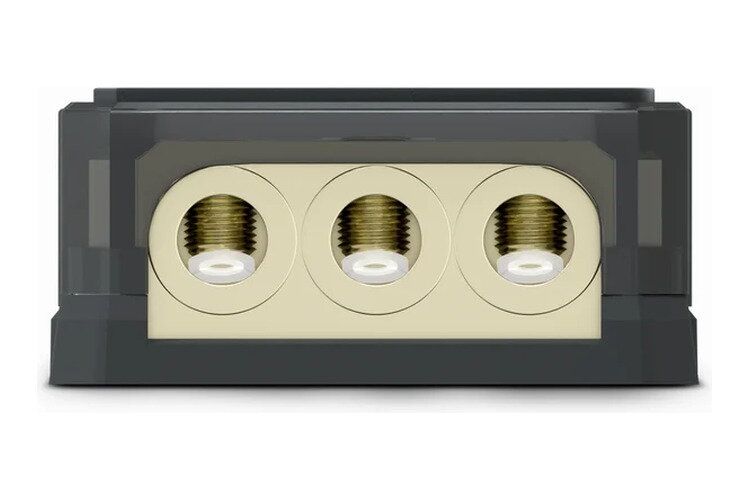

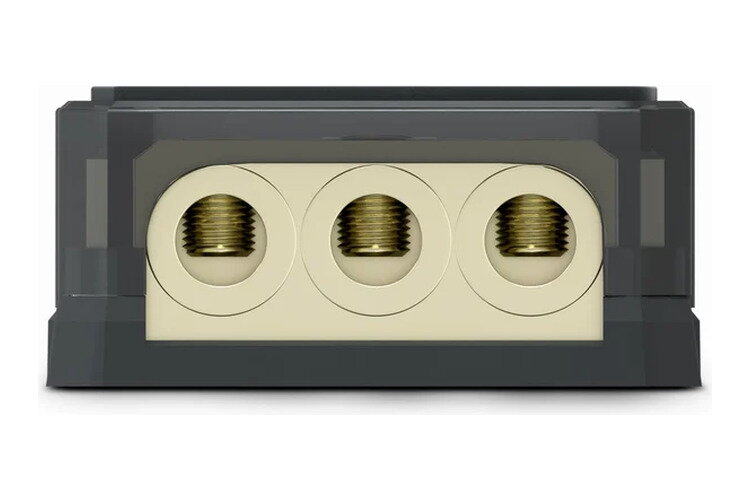

• Output Ports: 3x 1/0 AWG (Gauge) Outputs
• Internal Material: Solid Brass Block with Corrosion-Resistant Nickel Plating
• Enclosure Material: High-Impact Heat-Resistant Plastic Cover
• Terminal Type: Hex Allen Head Set-Screws
• Application: Automotive 12V DC Power and Ground Distribution Systems
