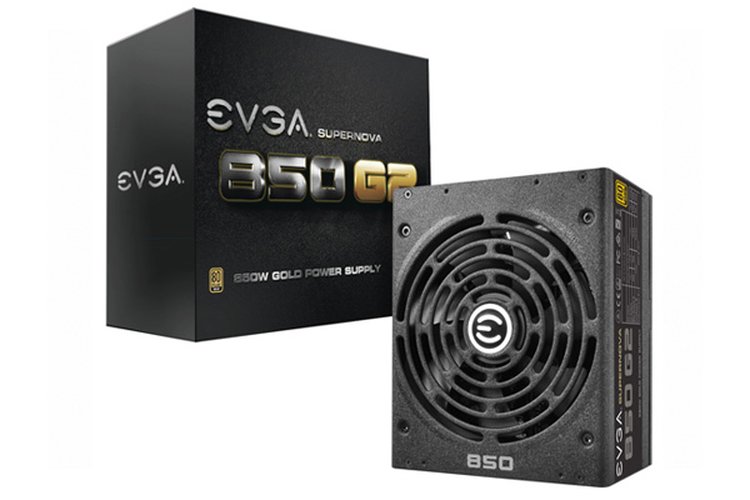

EVGA SuperNOVA 850 G2 Power Supply

EVGA SuperNOVA 850W G2 Power Supply Unit PSU 140mm Fan

Ready for 4th Generation Intel Core Processors (C6/C7 Idle Mode)

Unleash the next generation in power with the EVGA SuperNOVA 850 G2 Power Supply. Based on the award winning G2 series Power Supplies from EVGA, this power supply features 80 PLUS Gold rated efficiency, and clean, continuous power to every component. The new ECO Thermal Control Fan System offers fan modes to provide zero fan noise during low load operations. This provides improved efficiency for longer operation, less power consumption, reduced energy costs and minimal heat dissipation. Backed by a 10 year warranty and Japanese capacitor design, the EVGA SuperNOVA 850 G2 is not only the right choice for your system today, it is also the best choice for your system tomorrow.

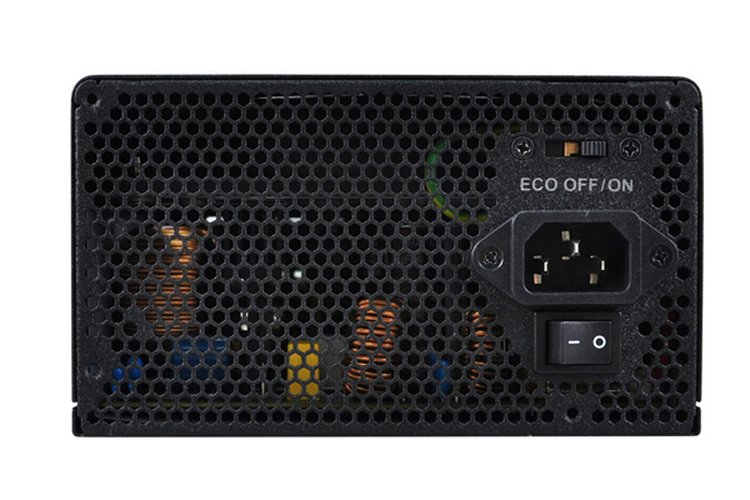

Model	SuperNOVA G2
Platform	Performance
Classification	Consumer
Rated Power (W)	850
Efficiency (Typical Load)	90%
80PLUS Certification	Gold
Cable Management	Fully-Modular
Form Factor	ATX
Cooling System	140mm Fan
Fan Lighting	None

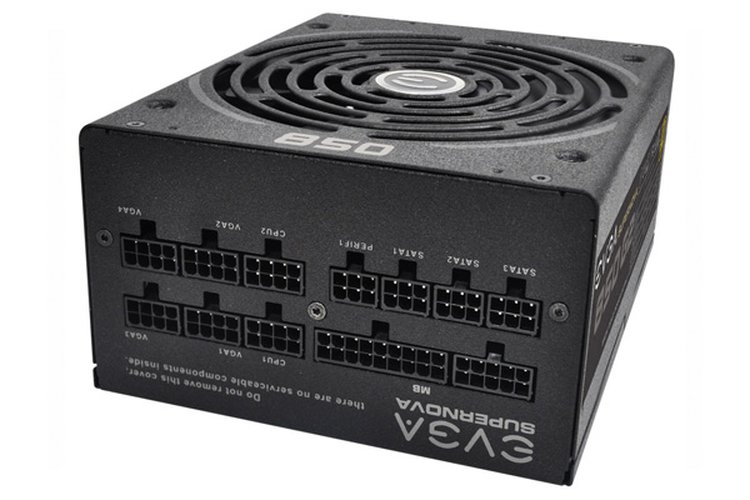

Modular Connectors	Mains Power 20+4P (1), 4+4P CPU (2), PCI-E 6+2P(4), PCI- E 6P(2), Molex 4P(4), SATA(10), Floppy(1)
PCI-E Connectors (Max)	6
Rail System (+12V)	Single Rail
Output Configuration	Please visit vendor website for output wattage configuration
Input Voltage	100-240V AC
Powered	Mains Power Cable (IEC-C13)
Protection	OCP / OPP / OVP / SCP
MTBF (Hours)	100,000
Other Features	None

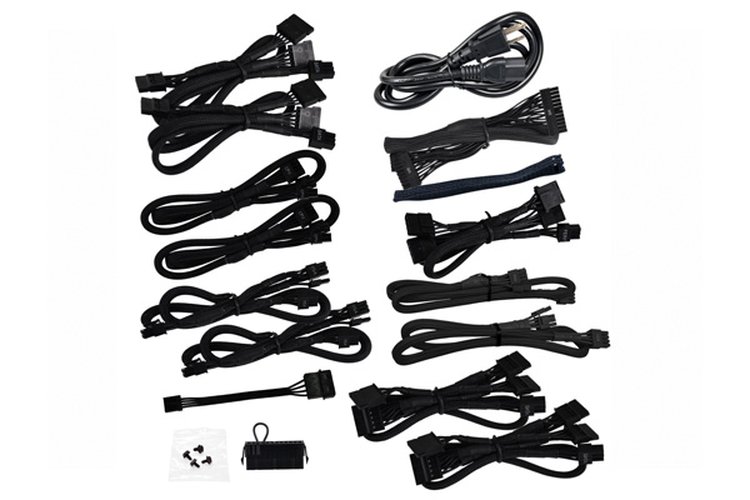

Package Contents	Mains Power Cable (1), Modular Cables (as outlined above)
Packaging	Retail
Unit Dimensions (W x H x D mm)	150 x 85 x 180
Weight (Kg)	3.63
Warranty	5 Years

TechPowerUp 2014/06/01		This platform is a real performer... its voltage regulation is tight, which results in stable DC rails, and its excellent ripple suppression is cause for very clean voltage outputs. It also features a fully modular design, a feature most users look for nowadays, and packs a silent overall operation because of its quiet fan and optional semi-passive operation…
HiTechLegion 2014/04/01		The 850 G2 delivered some of the best performance we have seen to date...
JonnyGURU 2014/04/01		Buy one. Do I really need to say anything else at this point? Once again, EVGA has something awesome here the competition can't seem to touch price wise.
PC Perspective 2014/04/01		Both the SuperNOVA 850 G2 and 750 G2 power supplies exhibited outstanding voltage regulation with low AC ripple, even at full load.
