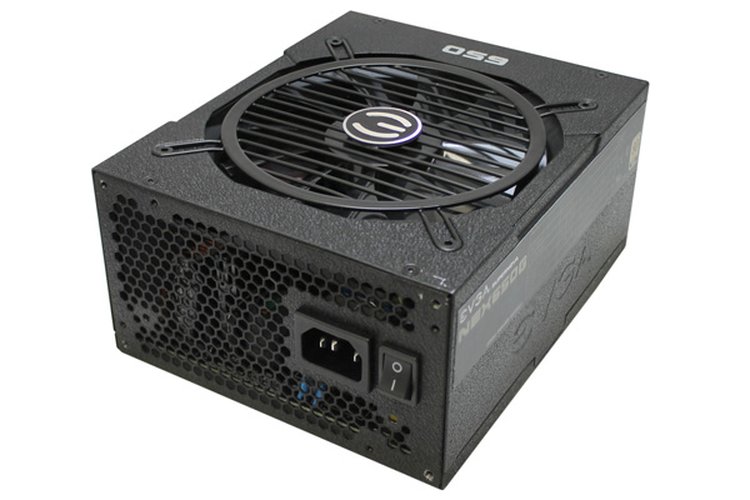

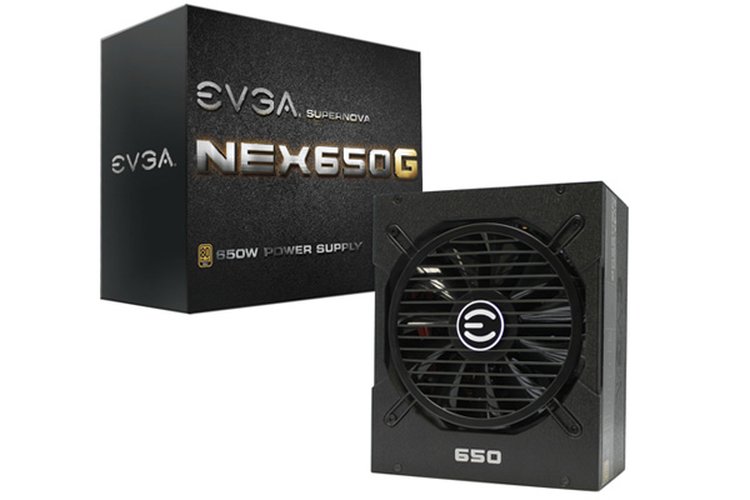

EVGA SuperNOVA 650 G1 Power Supply

UPC: 843368030919 SKU: 120-G1-0650-XR
EVGA SuperNOVA 650 G1 Power SupplyEVGA SuperNOVA 650 G1 Power SupplyEVGA SuperNOVA 650 G1 Power SupplyEVGA SuperNOVA 650 G1 Power Supply
$179
$179$155.85
Shipping Calculator
  • Standard to Metro (4-10 biz days)
  • Express to Metro (1-4 biz days)
  • Standard to Non-metro (10-20 biz days)
  • Express to Non-metro (2-6 biz days)
  • Pickup (Same or next biz day)
  • Longer ETA applies to NT, WA, NZ & US locations.
  • The above time frames are estimates only. The actual delivery time is dependent on the shipping location, shipper's processing capacity and other unforeseeable factors i.e. natural disasters, accidents etc. We cannot be held responsible for any courier-related delivery delays.
This product is discontinued
  • Availability:Out of Stock
  • Model: EVGA 650 G1
 Sold Out
Pickup at our Deer Park VIC warehouse. Schedule Pickup »
schedule pickup warehouse

EVGA SuperNOVA 650 G1 Power Supply Unit PSU 135mm Fan


Ready for 4th Generation Intel Core Processors (C6/C7 Idle Mode)

The EVGA SuperNOVA 650 Power Supply is here with Gold Rated Efficiency. Designed with enthusiast needs in mind the SuperNOVA series are the best choice to power next generation enthusiast computers. Combining 650W of continuous power with exceptional performance, stunning efficiency, and cutting-edge design and features, the SuperNOVA series power supplies are what you need to take your system to the next level.

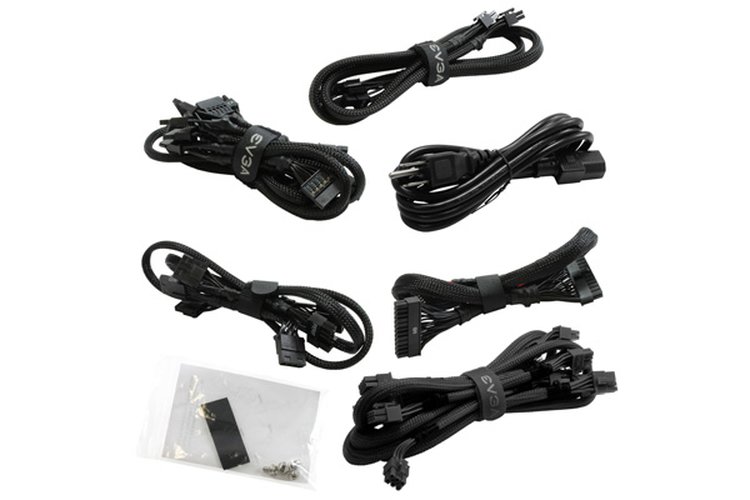

Cable Length

ATX Cable 1x 600mm (m)
EPS Cable 1x 600mm (m), 1x 750mm(m)
PCIE Cable 2x 600mm(m), 2x 750mm(m)
SATA Cable 1x 450mm, 550mm, 650mm (m), 2x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm (m), 1x 550mm, 650mm, 750mm +850mm (Floppy)
Floppy Adapter NA
AC Power 1x 1800mm (m)
Modular Cable Type Full

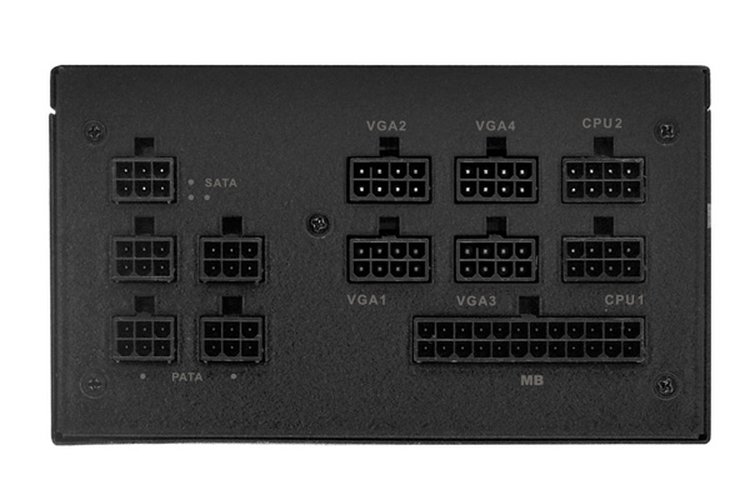

Connector Quantity

24 Pin ATX 1x
EPS (CPU) 2x 8pin (4+4)
PCIE 4x 8pin (6+2)
SATA 9x
Four-Pin Peripheral 6x
Floppy 1x

Power Specs

AC Input 100 - 240 VAC, 10-5A, 50 - 60 Hz
Rail +3.3V +5V +12V1 / +12V2 / +12V3 / +12V4 +5Vsb -12V
Max output 25A 25A 20A / 20A / 20A / 20A 3A 0.8A
53A
150W 636W 15W 9.6W
Total 650W @ +50C

Additional Details

Operating Temperature 0? to 50? C
Japanese Capacitors Main PCB
ECO Mode No
MTBF 100,000 Hours
Net Weight 8 lbs
Size 85mm (H) x 150mm (W) x 180mm (L)
Approvals TUV, cUL, UL, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
Fan Size / Bearing 135mm Double Ball Bearing
