DNA RVS50P 5" Rearview LCD Monitor + Butterfly/Flush Camera

EAN: 9328974025197SKU: RVS50P
DNA RVS50P 5" Rearview LCD Monitor + Butterfly/Flush Camera
$199.99
$199.99$151.85
Free Registered Shipping
  • w/ tracking to Metro (3-6 biz days)Free
  • Express to Metro (1-3 biz days)$12
  • w/ tracking to Non-metro (3-10 biz days)Free
  • Express to Non-metro (2-5 biz days)$12
  • Pickup (Same or next business day)Free
  • *Longer ETA may apply to NT, WA & NZ locations.
  • The above time frames are estimates only. The actual delivery time is dependent on the shipping location, shipper's processing capacity and other unforeseeable factors i.e. natural disasters, accidents etc. We cannot be held responsible for any courier-related delivery delays.
  • 12 Month Australian Warranty
  • Manufactured by: DNA
  • Availability:Low Stocknotifications_activeBe Quick!
  • Model: RVS50P
Own it now, pay laterlearn more »
Qty :
remove add
Pickup at our Deer Park VIC warehouse. Schedule Pickup »
schedule pickup warehouse

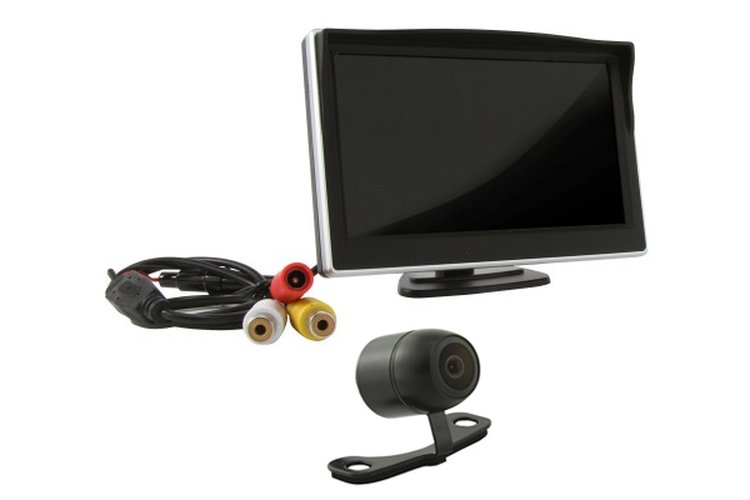

5" Inch Rearview LCD Monitor With Butterfly/Flush Mount Camera DNA Audio RVS50P CMOS Reverse Camera Waterproof IP68 rating


5" Rearview LCD Monitor With Butterfly/Flush Mount Camera


This kit provides a complete safety package incorporating a 5 inch screen and reverse camera in a convenient pack.

5 Inch rearview LCD monitor - (RVS50)
This 5 Inch screen is compatible with all our cameras models and has a built-in sunvisor
Fully adjustable ball joint bracket which is dash mountable with 3M adhesive tape.
Has two video inputs and includes 12V power cable.

Features:
High definition LCD display
360 Degree adjustable mount
2 x RCA Video inputs (AV2 (White) has priority over AV1 (Yellow)

Specifications:
Screen Size: 5 Inch LCD Display
Video System: PAL / NTSC
Mode: 4:3 or 16:9
Resolution: 800(H)*400(V)
Video Input: 1.0V±0.5Vp-p 75O
Auto Switching: V1 & V2 (Priority)
Operating temperature: -10°C - +50°C
Working Voltage: DC12V (+/-10%)
Consumption: 130mA±10%

CMOS Reverse Camera Butterfly Mount - (RCB170)
This miniature butterfly/flush mount camera is a truly universal solution for multipurpose vehicle installations.
Model Strengths:
Universal
Zinc Alloy Housing
Miniature
Side Mounting Option
PAL / NTSC Selectable* (By default set to PAL. To select NTSC cut the wire)
Parking Guide Lines*
Mirror Image*

Features:
Includes selectable options: PAL/NTSC video format, parking guide lines and reverse mirror imaging.
Camera also includes butterfly mount and flush mount and has a Waterproof IP68 rating.
Ideal for a wide range of vehicles wanting a safety solution. Rear, front or side mount applications.

Specifications:
Image Sensor: CMOS (PC3089)
Video System: PAL or NTSC (Selectable)
Scanning area: 4.80mm*3.73mm
Resolution: 756(H)*504(V)
Horizontal Resolution : 600 TVL
Electronic Shutter: 1s-1/10000(S)
SNR: =46.5dB
Min Illumination: 0.01Lux
Video Output: 1.0V±0.5Vp-p 75O
View Angle: 170°
Working Voltage: DC9V-15V±0.5V
Consumption: 100mA±10%
Waterproof Rating: IP68
