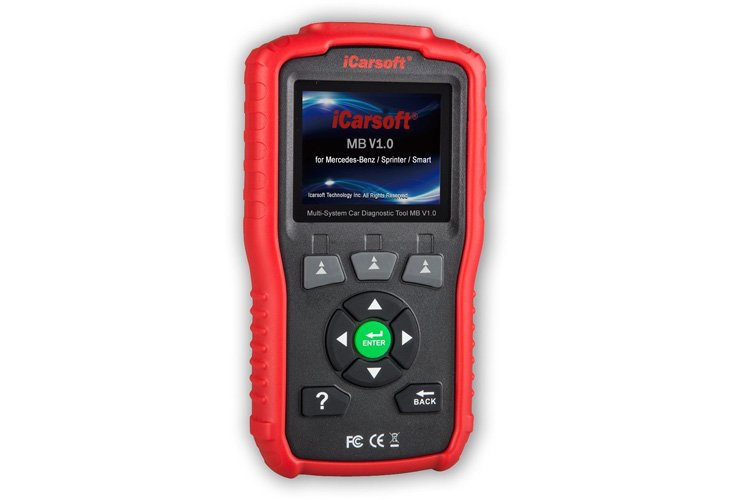

iCarsoft MB V1.0 Mercedes Benz OBD2 Diagnostic Code Scanner Tool

Mercedes Benz Diagnosis Tool  ECU diagnosis Oil Service reset and Battery Test

• Compatible with Mercedes-Benz vehicles:
• A Class: W168, W169, W176
• B Class: 245, 246
• C Class: 203, 204
• CL Class: 215, 216
• CLK Class: 209
• CLS Class: 218, 219
• E Class: 207, 211, 212
• G Class: 461, 463
• GL Class: X164, X168, X166
• GLK Class: X204
• M Class: W163, W164, W166
• R Class: 251
• S Class: 220 , 221 , 222
• SL Class: R230, R231
• SLK Class: R170, R171, R172
• SLS: C197
• SLR: Series 199
• MAYBACH: V240, W240
• Reads and clears trouble codes on all the systems such  as engine, transmission, ABS and airbag and much more
• SAS - Steering Angle Sensor (require latest firmware update)
• Full System Diagnosis
• SAS - Steering Angle Sensor (require latest firmware update)
• Support Oil Service Reset
• Multi-language: English, German, Dutch, Spanish, French, Polish, Italian, Russian, Portuguese, Hungarian, Czech, Swedish, Norwegian, Finnish, Danish.
• Read & Clear DTC
• Read Live Date
• Support Battery Test
• Support Data Review and Print

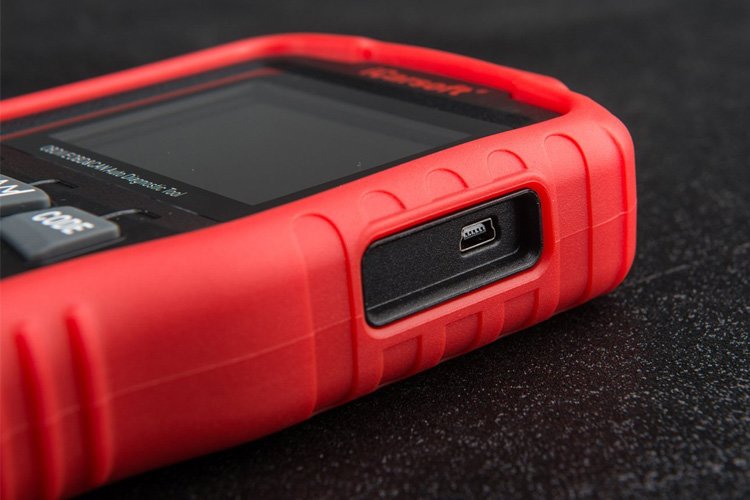

• Full Speed Upgrade Via USB 2.0
• MB V1.0

• 1. Read Codes
• 2. Erase Codes
• 3. I/M Readiness -- I/M Readiness indicates whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
• 4. Data Stream
• 5. Freeze Frame -- When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an em-ission-
• related fault.
• 6. O2 Sensor Test -- This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle's on-board computer.
• 7. On-Board Monitoring -- This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
• 8. Evap System Test -- The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.
• 9. Vehicle Information -- The option displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the test vehicle.
• 10. Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes
• 11. Turn off Check Engine Light (MIL), clear codes and reset monitors
• 12. Read live PCM datastream
• 13. Support CAN (Controller Area Network) and all other
• 14. Multilingual menu and DTC definitions- English, Spanish, and German, etc
• 15. Read pending DTCs
• 16. Read permanent DTCs
• 17. DTCs search
• 18. Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.
• 19. Works on most of 2001 and later OBDII compliant PETROL European vehicles
• 20. Works on most of 2004 and later OBDII compliant DIESEL European vehicles
• 21. Works on most of 1996 and later OBDII compliant US and Asian vehicles
• 22. View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.
• 23. Comprehensive Help, Including OBD Parameter, Mode Explanations & More.

• Display: 2.8″ TFT LCD, 320*240 Pixels
• Operation Temperature: 0°C ~ 50°C
• Storage Temperature: -20°C ~ 70°C
• Operating Voltage: 9 ~ 18V
• Operating Current: 150mA@12V(Typical)
• Power Consumption: 1.8W(Typical)
• Dimension: 187.5*101*32 mm (L x W x H)
