PLX Kiwi 4 OBD2 OBDII Bluetooth Diagnostic Scanner For Android & Apple

Bluetooth OBD2 Wireless Diagnostic Scan Tool for iOS and Android Devices

The Kiwi 4 is a true wireless OBD2 scanner which allows you to connect to your vehicle's diagnostic port over Bluetooth, delivered straight to your compatible smartphone. The wide range of functions makes this a great scanner to have when you're on the go and have limited available space in your cabin.

While the Kiwi 4 doesn't compare to a full-sized, full-system scanner, it is fantastic for those who are needing to diagnose basic DTC's and clear them, as well as viewing live data from compatible systems such as vehicle speed, RPM, and much more.

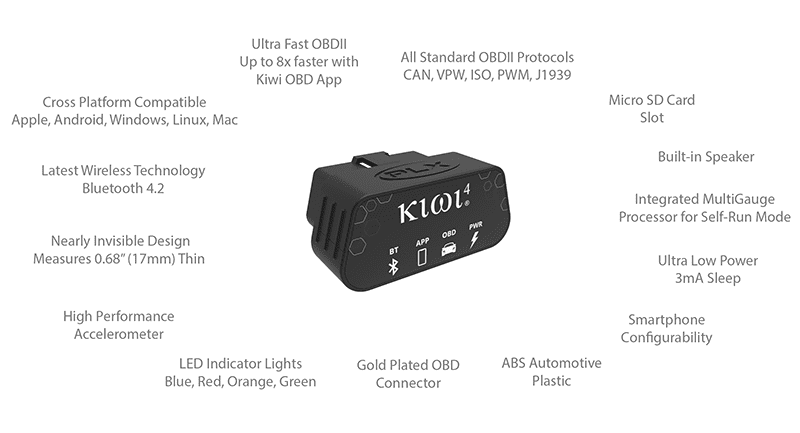

• Significantly faster than most other scanners on the market
• Integrated MicroSD card for data logging & import into spreadsheets
• Integrated speaker with four audible alert/warning smart triggers
• In-built accelerometer obtains Lat/Long Gs without the need of your smartphone
• Smartphone mode for real-time interface with compatible apps from iOS/Play Store
• Self-fun mode for persistent data logging without a smartphone connection
• Low power consumption of only 0.2W while active and 0.05W while sleeping
• Can be left plugged into the OBD2 port and permanently installed in the vehicle
• Compatible with most fully OBD2 compliant vehicles from 2006 onwards

Designed to Outperform

The Kiwi 4 scanner takes innovation all the way up to the next level with three powerful new features all while retaining the same exterior dimension of only 0.68-Inches thin & 100% backwards compatibility of the Kiwi 3.

Compatible with most fully OBD2 compliant vehicles on the market from 2006 onwards, simply plug the scanner into the trapezoid-shaped diagnostic port and download the Kiwi OBD application to configure the device, and enable new features such as audible alerts/warnings, lat/long acceleration and data logging.

Smartphone Mode

In smartphone mode, the scanner behaves like the Kiwi 3/2/1, where a persistent connection with the smartphone must be present. The smartphone mode enables the use of real-time data to pass to & from the scanner enabling powerful OBD2 apps such as Kiwi OBD & other compatible third-party apps to be used.

Self-Run Mode

In self-run mode, the scanner is not required to be connected to a smartphone. The Kiwi 4 can be configured to monitor up to 16 different OBDII parameters - that data is then automatically logged in CSV format with its corresponding timestamp, datestamp straight to the onboard MicroSD card for exporting to your desired spreadsheet software.

Depending on the app & vehicle's make/model the Kiwi 4 can display the following functions:

• Air flow (MAF)

• Air intake temperature

• Ambient air temperature

• Barometric pressure

• Catalytic converter temp

• Coolant temperature

• ECU voltage

• Engine load

• Engine timing

• Evaporative purge

• Fuel level

• Fuel pressure

• Intake pressure (MAP)

• Long term fuel trims

• OBD type

• Oxygen sensor voltages

• RPM

• Short term fuel trims

• Throttle position

• Vehicle speed
