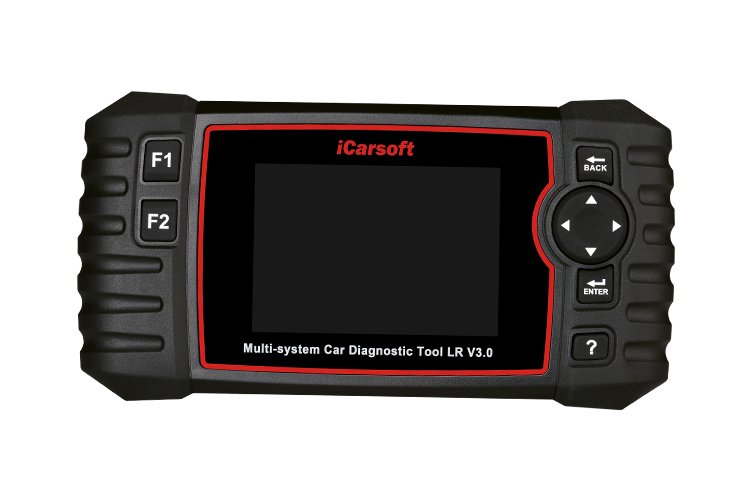

iCarsoft LR V3.0 Land Rover Jaguar Professional Diagnostic Scan Tool

iCarsoft LR V3.0 for LandRover/Jaguar

• Diagnose Single Brand of most Models(OBDII-16DLC)
• Steering Angle Sensor (SAS) Calibration
• Full System Diagnosis
• ABS Bleeding
• Auto identify technology
• Injector Coding
• Actuation Test / Bi-directory Test
• Read &Clear DTC
• Support Freeze Frame of Fault Code functions
• Read Live Data
• Supports Oil Service Reset
• Supports Battery Test
• Electronic Parking Brake system maintenance
• Supports Data Review and Print
• Battery Management System
• Full Speed Upgrade via Computer
• Diesel Particulate Filter Regeneration Control System

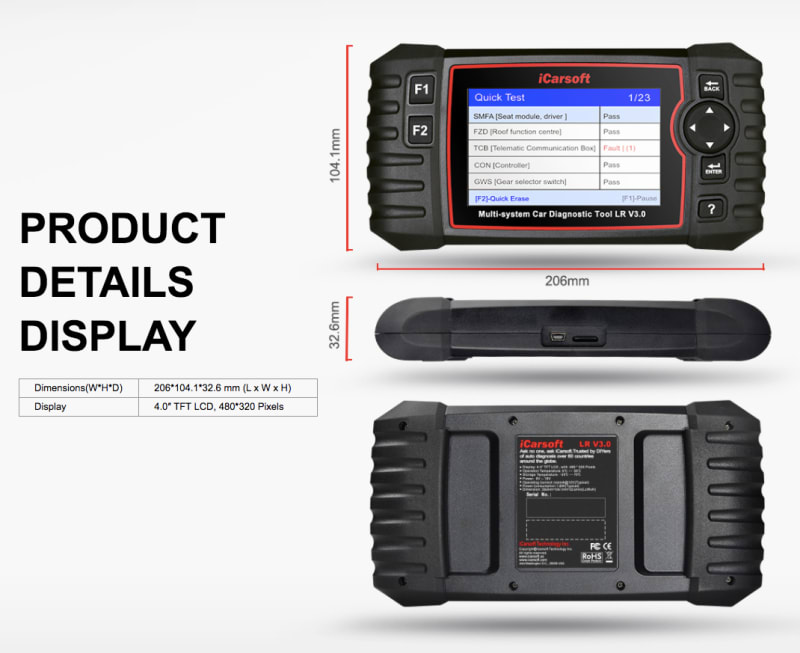

• 4.0” TFT LCD, 480*320 Pixels
• Supports Multi-Language
• Electronic Throttle Control System

• iCarsoft LR V3.0 can do it all-reads and clears trouble codes on most of the systems such as engine, transmission, ABS and airbag etc.
• Support OBDII/EOBD Ten Modes of Operation.
• Read Live Data.
• Full ECU Diagnosis.
• Applies to the single Brand of most of the Models which equipped with OBDIl-16 DLC.
• Easy To Use With Silicone Keys.
• Auto VIN technology can automatically identify model and year information in no time.
• Actuation Test / Bidirectory Test is used to access vehicle-specific subsystem and component tests.
• Support Freeze Frame of Fault Code functions.
• Oil Light/Service Reset: Support service lamp reset.
• Electronic Parking Brake (EPB) system maintenance deactivates and reactivates the EPB system for replacement and initialization.
• Battery Management System (BMS), registers new battery to the BMS while battery replacement.
• Diesel Particulate Filter (DPF) regeneration control system, requests the DPF regeneration process while DPF blockage and turn off the DPF indicator.
• Electronic Throttle Control system (ETC) relearns the throttle valve control value while clear or replace the throttle valve.
• Steering Angle Sensor (SAS) calibration, calibrates the steering wheel to straight ahead, or recalibrates SAS while steering part replacement.
• ABS Bleeding, release the air to restore ABS brake sensitivity, or relearn while ABS replaced.
• Injector coding, relearn the injector control parameter while the injector renewed or replaced.
• BCM(Body Stability), This function supports routine maintenance of DSC modules, for example, reset or delete the adaptation values, start-up the unit.
• ECM(Engine), This function supports routine maintenance of engine modules, for example, reset or delete the adaptation values, calculate fuel consumption.
• TCM (Trans adaption),This function supports routine maintenance of transmission modules, for example, reset adaptation values, adjust the oil level.
• Engine ldle. This correction can be executed when the idle speed fault is resolved. Adjust the engine speed of the car at idle speed.
• Air Suspension, Try reset electronic suspension air ride with the message system close all doors flip through message system go to suspension reset or off.
• TPMS service function include displaying sensor IDs from the vehicle`s ECu, inputting TPMS sensor replacement lDs and testing sensors.
• ACS(Air Conditioner),this function supports routine maintenance of air condition modules, for example, air conditioning system adaption reset, reset air conditioning compressor, run in air conditioning compressor, stepper motor initialization.
• Head Lamp is about the headlamp maintenance, maintenance and other related operations (including AFS setting), and then perform this function for calibration.
• Seat, after repairing or replacing the seat position drive motor, it is necessary to perform relevant functions for calibration.
• DER, after repairing or replacing the window lift motor, it is necessary to perform relevant functions for calibration.
• The Print Data function allows you printing out diagnostic data recorded by the scan tool or customized test reports.
• Battery test allows you getting the voltage of battery with OBD port by the scan tool when the engine starts.
• DTC Library to lookup when user is operating this tool.
• Upgrade Via Computer.
• Multi-language: English, German, Dutch, Spanish, French and more.
