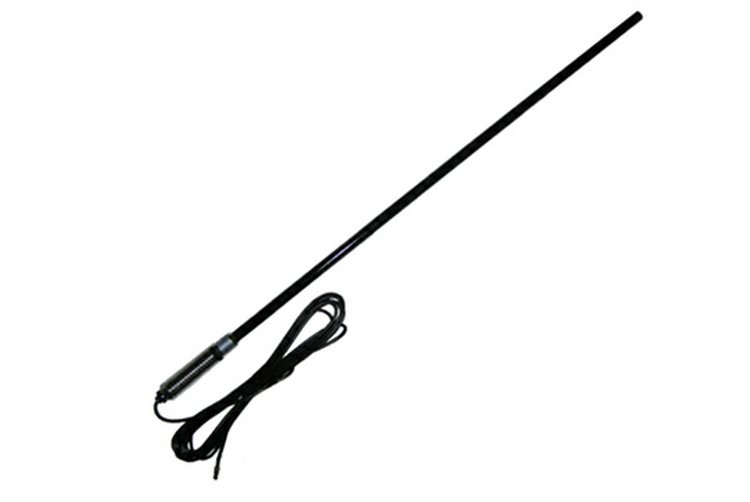

Strike RFI CD2195 Broomstick Antenna
Multi-Band Broomstick Antenna RFI CD2195
The CD-2195 series antenna offers revolutionary multi-band
performance for the most demanding of voice and data requirements. With
high gain and consistent performance across 3G850, GSM900/1800, 3G900,
GSM-R1800, PCS1900 and 3G2100, the CD-2195 is ideal for use in fringe
areas and rural applications across the world.
The secret to this antenna's extraordinary performance lies in the use
of two unique PCB radiators. These meander circuits are coupled together
to deliver extraordinary consistency in gain and pattern. This latest
design offers coverage across multiple networks ideal for the latest
requirements where network operators can switch calls between bands.
With a 13mm stud mount, these antennas may be installed on a number of
mounting brackets and are ideal for installations in commercial
vehicles, four wheel drives and trucks.
They can also be used as fixed base station antennas for wireless local
loop applications.
- Frequency Range: 824-960MHz & 1710-2170MHz
- Input Impedance: 50Ω
- VSWR: <2.5:1
- Polarisation: Vertical
- Radiation: Omnidirectional
- Vertical Beamwidth: 21° & 57°
- Maximum Power: 10Watts
Mechanical/Environmental Specifications
- Construction: Fibreglass radome, PCB Radiator, electro-polished stainless steel spring
- Cable: 5m Cellfoil 9006 low loss coaxial
- Connector: FME Female
- Length: 890mm
- Weight: 0.572kg
