BOOX Onyx InkSpire Magnetic Charging Stylus for Tab X C

Premium Active Digital Staging Delivering Tactile Haptic Resonance and Magnetic Wireless Power.

The BOOX InkSpire Magnetic Charging Stylus marks a highly advanced evolutionary leap in Onyx BOOX ePaper handwriting technology, precision-engineered exclusively for the Tab X C color tablet environment. Moving far beyond traditional passive styluses, it integrates an active haptic pressure sensor that delivers a realistic, responsive vibration directly to your fingertips to mirror the friction of pen-on-paper note-taking. Armed with 4,096 levels of high-definition pressure tracking, intuitive tilt recognition, and a built-in rechargeable battery that draws power wirelessly straight from the device's magnetic frame, the InkSpire delivers uncompromised accuracy and natural flow for creative sketching and professional document markup.

• Active Haptic Pressure Feedback: Houses an internal haptic sensor engine that provides immediate tactile feedback during handwriting strokes, realistically simulating the texture and drag of writing on actual paper.
• Integrated Magnetic Wireless Charging: Snaps securely onto the magnetic charging lane of the Tab X C, drawing power wirelessly from the host tablet to ensure the digitizer is constantly topped up.
• On-Screen Battery Level Tracking: Features automated firmware communication that displays the stylus's real-time battery percentage on the E Ink status bar the moment it is magnetically docked.
• 4,096 Pressure & Tilt Sensitivity Levels: Captures subtle shifts in hand pressure and drawing angles, shifting line weights dynamically to reproduce highly accurate cursive scripts and nuanced shading.
• Slim Ergonomic Blueprint: Formulated with a thin 8.6mm barrel diameter and balanced weight profiling to reduce finger fatigue, providing a natural grip during extended writing, drawing, or notation sessions.

• Stylus Profile: Active Haptic E Ink Digital Stylus / Digitizer Pen
• Primary Target Compatibility: BOOX Tab X C (Exclusive active functionality pairing layout)
• Pressure Sensitivity Engine: 4,096 Levels
• Tilt Tracking Optimization: Multi-Angle Adaptive Tilt Recognition Supported
• Tactile Core Technology: Integrated Structural Haptic Pressure Sensor Module
• Internal Battery Topology: Built-in 80mAh Rechargeable Battery
• Charging Interface: Magnetic Wireless Induction (Sourced directly from the tablet's frame housing)

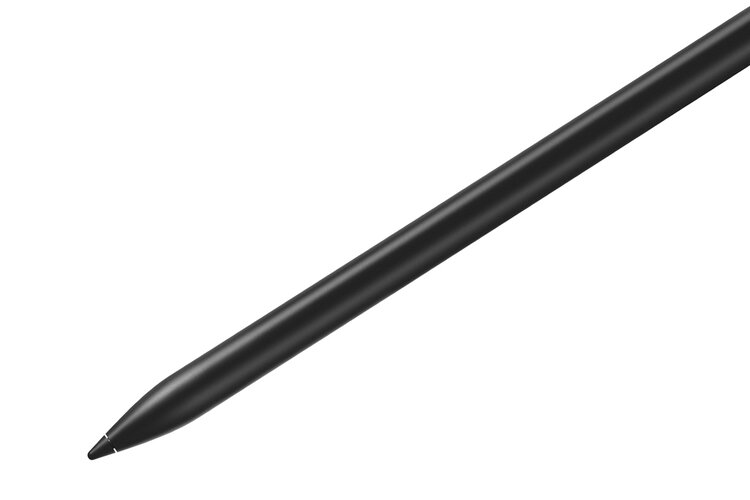

• Stylus Tip Profile: 1mm Diameter Replaceable Fine-Point Nib Matrix
• Pen Physical Diameter: 8.6 mm
• Pen Physical Length: 165 mm (Measured comprehensively with nib installed)
• Product Net Weight: Approximately 15 grams
• Power Configuration: Low-Voltage Active Battery Powered (Charged completely via the tablet's inductive magnetic lane; removes all dependency on direct USB plug configurations)
• What's in the Box:

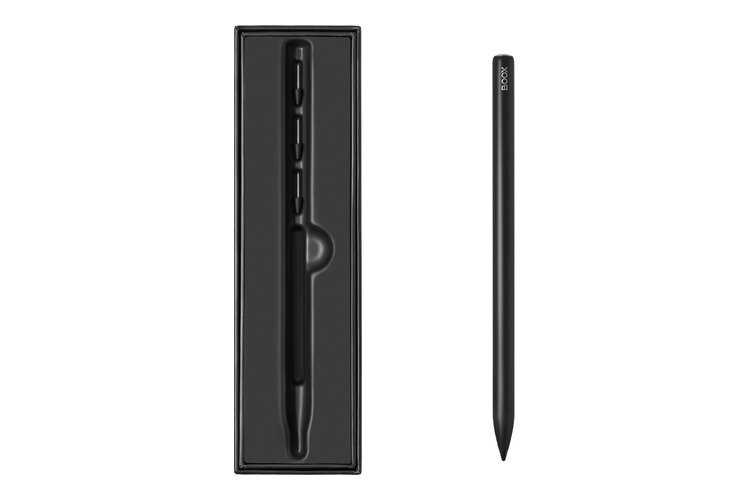

  • 1 x BOOX InkSpire Magnetic Charging Stylus
  • 1 x Pre-Installed 1mm Fine-Point Stylus Tip
  • 1 x Quick-Start Operations and Calibration Pairing Leaflet
