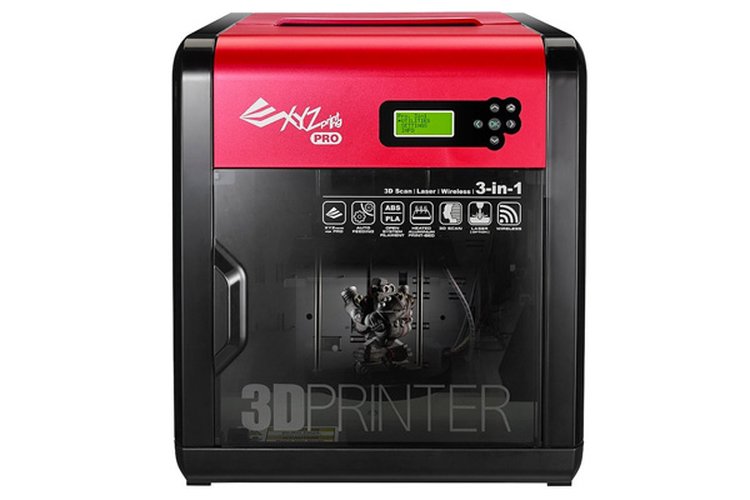

XYZ Printing Da Vinci 1.0 PRO 3-in-1 3D Printer & Scanner
Da Vinci 1.0 PRO Professional 3-in-1 3D Printer
Our Professional 3-in-1 Open Source Filament 3D Printer
With a built-in scanner, optional laser engraving add-on capability, and an open source filament system that allows you to print in third-party ABS and PLA 1.75mm filaments, the da Vinci Pro 3-in-1 is the perfect machine for becoming your own manufacturer. The da Vinci Pro 3-in-1 is made for those seeking high-end 3D printing performance. It has fully adjustable heating, speed, and retraction settings and it is equipped with an aluminum print bed for decreased chances of warpage.
3D Scanning
- Finished scans are fully editable; you can scale them, reposition them, and use different post-production software to give your prints a unique finish
- Multi-scan function: Scan your models in multiple angles and the software will merge them into one image to provide the best possible results.
- Dual-laser scanning technology for distortion-free capture of every single detail
- 360-degree automatic rotating platform
- Automatic imaging takes only 5 minute
3D Printing
- New and intuitive calibration system that uses specially designed knobs and detection software which guide you in the right direction.
- The aluminum print bed allows for an even distribution of heat which decreases the chances of warpage
- Extruder design allows you to quickly release it from its container for easy cleaning and replacement
- Capable of using third party 1.75mm ABS and PLA filament
- 20 x 20 x 19 cm build size
Laser Engraver : Engrave Your Way
The da Vinci Pro 3-in-1 has an optional laser engraver module can be used to engrave your creative designs onto various materials such as paper, cardboard, leather, wooden boards, and plastic surfaces with a 7.8 x 7.8 inch engraving area.

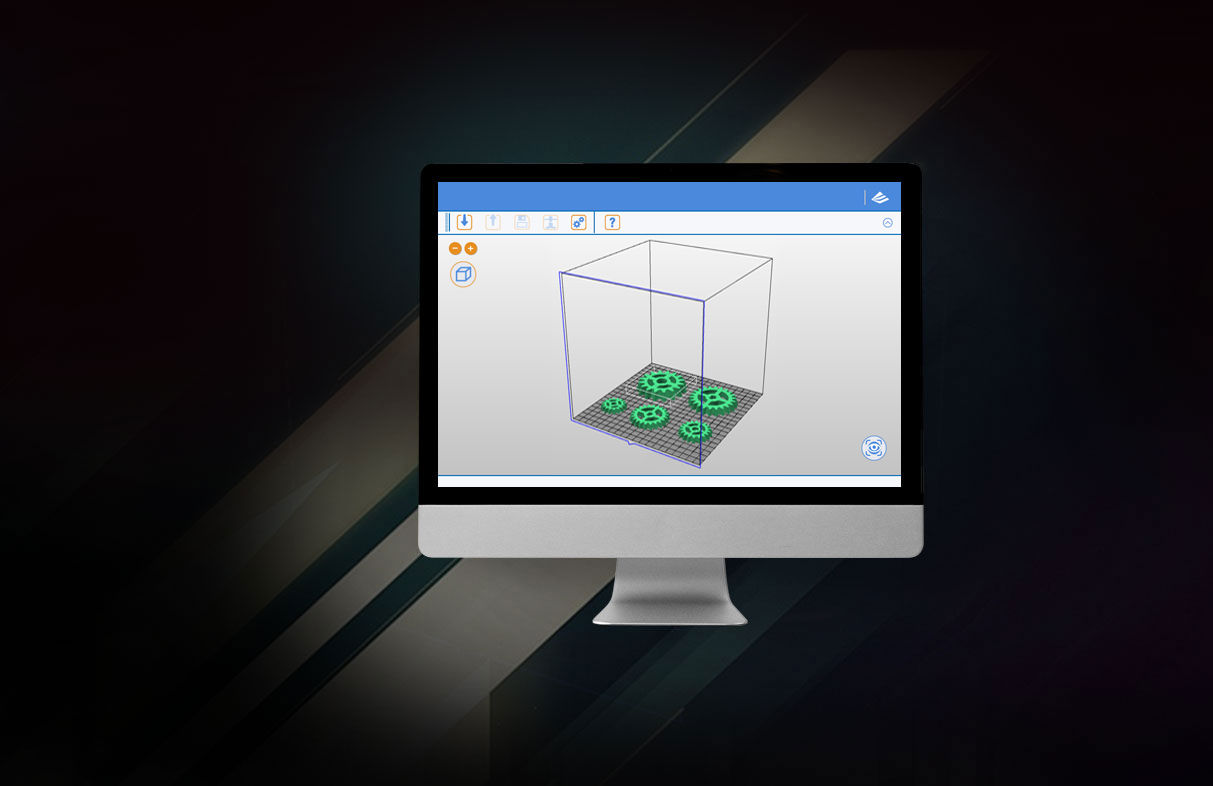

XYZware Pro: Faster Slicing, More Control
The new XYZware Pro enables you to adjust nozzle and print bed temperature, speed, print support, and retraction settings. It has improved slicing speeds and is compatible with third party g-codes*
Connect From Anywhere in Your Home Network
The da Vinci Pro 3-in-1 has built in wireless local area network (Wireless LAN) connectivity, allowing it to connect to your laptop or desktop computer from anywhere in your home, school, or office.
Dimensions
Product Dimension (WxHxD)
46.8 x 51 x 55.8 cm (18.4 x 20 x 22 inch)
Package Dimension
56 x 59 x 70 cm (22.1 x 23.3 x 27.6 inch)
Gross Weight
27.5kg
Print Technology
Fused Filament Fabrication (FFF)
Print Dimension (L x W x H)
200 x 200 x 190 mm
Layer thickness
Fine 0.1 mm (100 microns)
Standard 0.2 mm (200 microns)
Speed 0.3 mm (300 microns)
Ultra Fast 0.4 mm (400 microns)
Print Head
Single Nozzle
Nozzle Diameter
0.4 mm
Print Material
ABS/PLA
Display
Display Screen
2.6” FSTN LCM
Language
Multi Language
Connectivity
USB 2.0 / WiFi
Printing Temperature Range
Printed Extruder:
170°C ~ 240°C (338°F ~ 464°F)
Printed Bed:
41°C ~ 90°C (105°F ~ 194°F)
Software
Print Software
XYZware Pro
File Format
.stl , XYZ Format (.3w), G-code
Operating System
Win7 / Win8 / Mac OS X 10.8 and above
Hardware
Hardware Requirements
X86 32/64-bit compatible & i3 Intel CPU or above PCs
with 4GB+ DRAM (for PC)
64-bit compatible Macs with 4GB+ DRAM (for Mac)
Scan
Scan Technology
Slit Laser Triangulation
Scan Resolution
(Diameter x H)
3 x 3 cm – 15 x 15 cm/
1.18 x 1.18”- 5.9 x 5.9”
Scan Resolution
2140 points/cm2
(13900 points/inch2)
Turntable payload
≦ 3 Kg/6.6lbs
Scan Accuracy
0.25mm
Scan Software
XYZscan
Laser engraver module
Engraving area
20 cm x20 cm
Laser Wavelength
350mW ± 10%
Laser Wavelength
450nm+5nm/-10nm InGaN
File Types
JPG / PNG / GIF / BM
Laser Software
XYZware Pro
