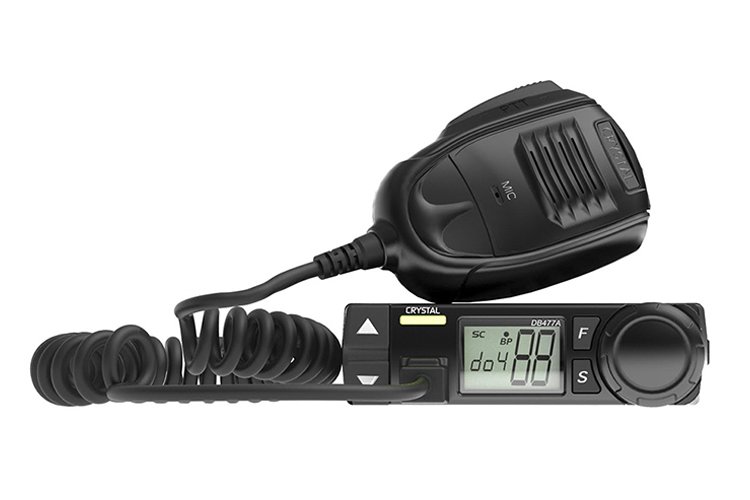

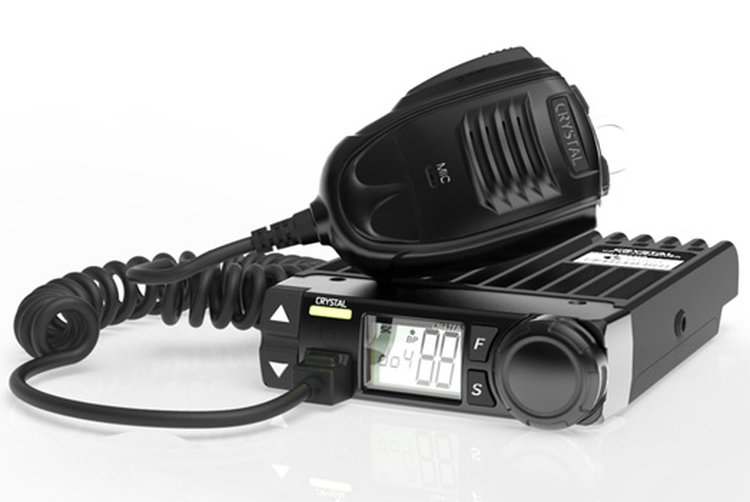

Crystal DB477A Compact 80 Channel 5W In-Car UHF CB radio
EAN: 9317114912695 SKU: DB477A
Pickup at our Deer Park VIC warehouse.
Schedule Pickup »
Compact 80 Channel 5-Watts In-Car UHF CB radio
Ultra-compact UHF CB radio with 80 narrow band channels, automatic squelch controls and crystal clear sound for your vehicle. 100% aluminium die cast chassis with large multicolour backlit display and mute-out capability onto your car’s stereo when receiving. This radio is suitable for common logistic purposes.
Uses duplex range extender and capable of automatic scan.
| Frequency Range | RX: 476.4250 ~ 477.4125MHz, TX: 476.4250 ~ 477.4125MHz |
|---|---|
| Number Of Channels | Max. 80 |
| Operation Mode | 8K5φF3E |
| Channel Spacing | 12.5kHz |
| Antenna Impedance | 50Ω |
| Working Temperature | –20℃ ~ 60℃ |
| Power Supply | 13.8V DC±15% (11.7~15.8V) |
| Grounding Method | Negative ground |
| Current Drain | Less than 150mA on standby, less than 350mA on receive, less than 1.5A on transmit |
| Frequency Stability | ±2.5ppm |
| Dimensions | (W x H x D) 112 x 30 x 155 mm (Dimensions are including protrusions) |
| Weight: | Approx. 0.8kg (including microphone) |
| Transmitter RF Power Output | 5Watts |
| Spurious And Harmonics | 60dB |
| Adjacent Channel Power | 60dB |
| FM Noise | 40 dB |
| Audio Distortion | Less than 5% |
| Receiver Sensitivity EIA 12dB SINAD | 0.28μV |
| Adjacent Channel Selectivity | 60dB |
| Intermodulation | 60dB |
| Audio Output Impedance | 8Ω |
| Audio Output At 8Ω | 0.5W or higher (10% distortion) |
